p-CH3-C6H4-Cl
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Chlorine
|
|
|
Nuclear
Quadrupole Coupling Constants |
|
|
|
in

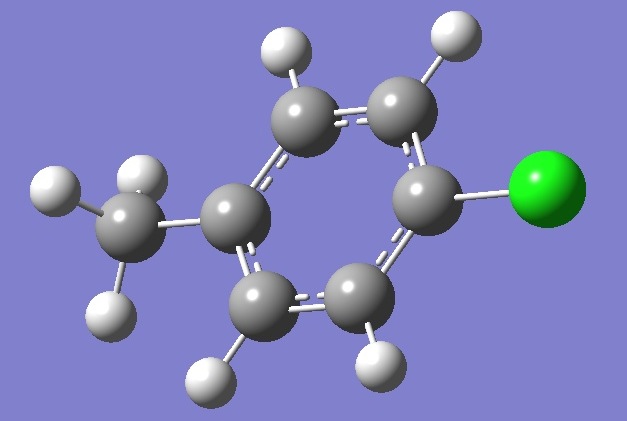

p-Chlorotoluene |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Chlorine nqcc's were calculated here
on a molecular structure determined by B3P86/6-31G(3d,3p) optimization,
assuming a plane of symmetry
perpendicular to the plane of the ring. These are compared with
the
experimental nqcc's [1] in Table 1. Structure parameters are
given
in Table 2, atomic coordinates in Table 3. |
|
|
|
|
|
|
|
|
|
|
|
|
In Table 1, subscripts a,b,c refer to
the principal axes of the inertia tensor, subscripts x,y,z to the
principal axes of the nqcc tensor. The nqcc y-axis is chosen
coincident with the inertial b-axis, these are perpendicular to the
symmetry plane of the molecule. Ø (degrees) is the angle
between its subscripted parameters. ETA = (Xxx - Xyy)/Xzz. |
|
|
|
|
|
|
|
|
|
|
|
|
RMS is the root mean
square difference between calculated and experimental diagonal
nqcc's. RSD is the calibration residual standard deviation
for the B1LYP/TZV(3df,2p) model for calculation of the nqcc's. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
Table 1. Chlorine nqcc's
in p-Chlorotoluene (MHz). Calculation
was made on the B3P86/6-31G(3d,3p) ropt structure. |
|
| |
|
|
|
|
|
|
|
|
|
|
|
Calc. |
|
Expt. [1] |
|
| |
|
|
|
|
|
|
|
|
35Cl |
Xaa |
- |
71.73 |
- |
71.155(5) |
|
|
|
Xbb |
|
38.63 |
|
37.979(7) *
|
|
|
|
Xcc |
|
33.10 |
|
33.176(7) *
|
|
|
|
|Xac| |
|
0.22 |
|
|
|
|
|
|
|
|
|
|
|
|
|
RMS
|
|
0.45 (0.94 %)
|
|
|
|
|
|
RSD |
|
0.49 (1.1 %) |
|
|
|
|
|
|
|
|
|
|
|
|
|
Xxx |
|
33.10 |
|
37.979(7) |
|
|
|
Xyy |
|
38.63 |
|
33.176(7) |
|
|
|
Xzz |
- |
71.73 |
-
|
71.155(5)
|
|
|
|
ETA |
|
0.077 |
|
|
|
|
|
Øz,a |
|
0.12 |
|
|
|
|
|
Øa,CCl |
|
0.11 |
|
|
|
|
|
Øz,CCl |
|
0.01 |
|
|
|
|
|
|
|
|
|
|
|
|
37Cl |
Xaa |
- |
56.53 |
- |
56.069(7) |
|
|
|
Xbb |
|
30.45 |
|
29.909(9) **
|
|
|
|
Xcc |
|
26.08 |
|
26.160(9) **
|
|
|
|
|Xac| |
|
0.17 |
|
|
|
|
|
|
|
|
|
|
|
|
|
RMS
|
|
0.41 (1.1 %)
|
|
|
|
|
|
RSD |
|
0.44 (1.1 %) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
*
Calculated here from experimental Xaa and Xbb - Xcc
= 4.802(13) MHz. |
|
|
**
Calculated here from experimental Xaa and Xbb - Xcc
= 3.749(16) MHz. |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
| Table 2. p-Chlorotoluene.
Molecular structure parameters, ropt (Å and
degrees). |
| |
|
|
|
|
Ring |
C(1)C(2) |
1.3953 |
|
|
C(2)C(3) |
1.3889 |
|
|
C(3)C(4) |
1.3885 |
|
|
C(4)Cl |
1.7370 |
|
|
C(2)H(2) |
1.0860 |
|
|
C(3)H(3) |
1.0835 |
|
|
C(6)C(1)C(2) |
117.99 |
|
|
C(1)C(2)C(3) |
121.47 |
|
|
C(2)C(3)C(4) |
119.12 |
|
|
C(3)C(4)C(5) |
120.81 |
|
|
C(1)C(2)H(2) |
119.49 |
|
|
C(2)C(3)H(3) |
120.92 |
|
Methyl |
C(1)C(7) |
1.5021 |
|
|
C(7)H(8) |
1.0953 |
|
|
C(7)H(9,10) |
1.0923 |
|
|
C(1)C(7)H(8) |
111.06 |
|
|
C(1)C(7)H(9,10) |
111.39 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Table 4. p-Chlorotoluene.
Atomic coordinates, ropt. Normal species. |
| (More figures are shown than
are significant.) |
| |
|
|
|
|
|
|
|
|
|
|
a (Å) |
|
b (Å) |
|
c (Å) |
|
|
|
|
|
|
|
|
|
C(1) |
|
1.918136 |
|
0.0 |
|
0.008982 |
|
C(2,6) |
|
1.199437 |
± |
1.195973 |
|
0.008869 |
|
C(3,5) |
- |
0.189441 |
± |
1.207376 |
|
0.003133 |
|
C(4) |
- |
0.875142 |
|
0.0 |
- |
0.001172 |
|
Cl |
- |
2.612126 |
|
0.0 |
- |
0.004485 |
|
H(2,6) |
|
1.734315 |
± |
2.141093 |
|
0.015538 |
|
H(3,5) |
- |
0.738499 |
± |
2.141458 |
|
0.005346 |
|
C(7) |
|
3.420029 |
|
0.0 |
- |
0.015294 |
|
H(8) |
|
3.797132 |
|
0.0 |
- |
1.043616 |
|
H(9,10) |
|
3.826472 |
± |
0.884469 |
|
0.480401 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[1]
V.A.Shubert, D.Schmitz, and M.Schnell, Mol.Phys. 111,2189(2013). |
|
|
|
|
|
|
|
|
|
|
|
|
G.E.Herberich, Z.Naturforsch.
22a,761(1967): Xaa(35Cl)
= -71.7(7) and Xaa(37Cl)
= -56.6(13) MHz
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
