C7H14N2 O2





















Nitrogen

Nuclear Quadrupole Coupling Constants


in N-Acetyl-L-Valinamide





















Nitrogen nqcc's in C7 and C5 conformers of N-acetyl-L-valinamide  (Ac_Val_NH2) were determined by León et al. [1].  Calculation of the nqcc tensors was made here on B3P86/6-31G(3d,3p) structures.  These structures are given here in z-matrix format.  Calculated and experimental nqcc's are compared in Tables 1 and 2, rotational constants in Table 3.

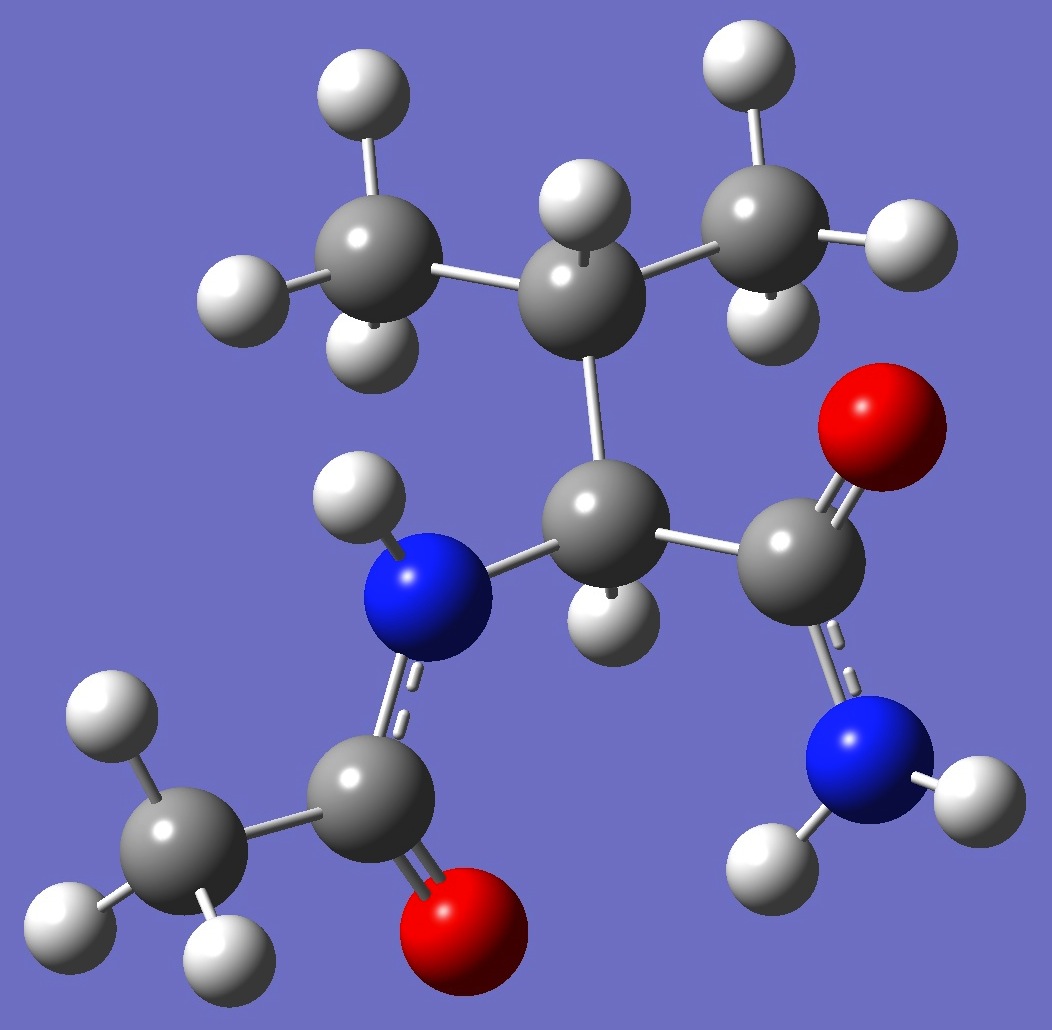

C7

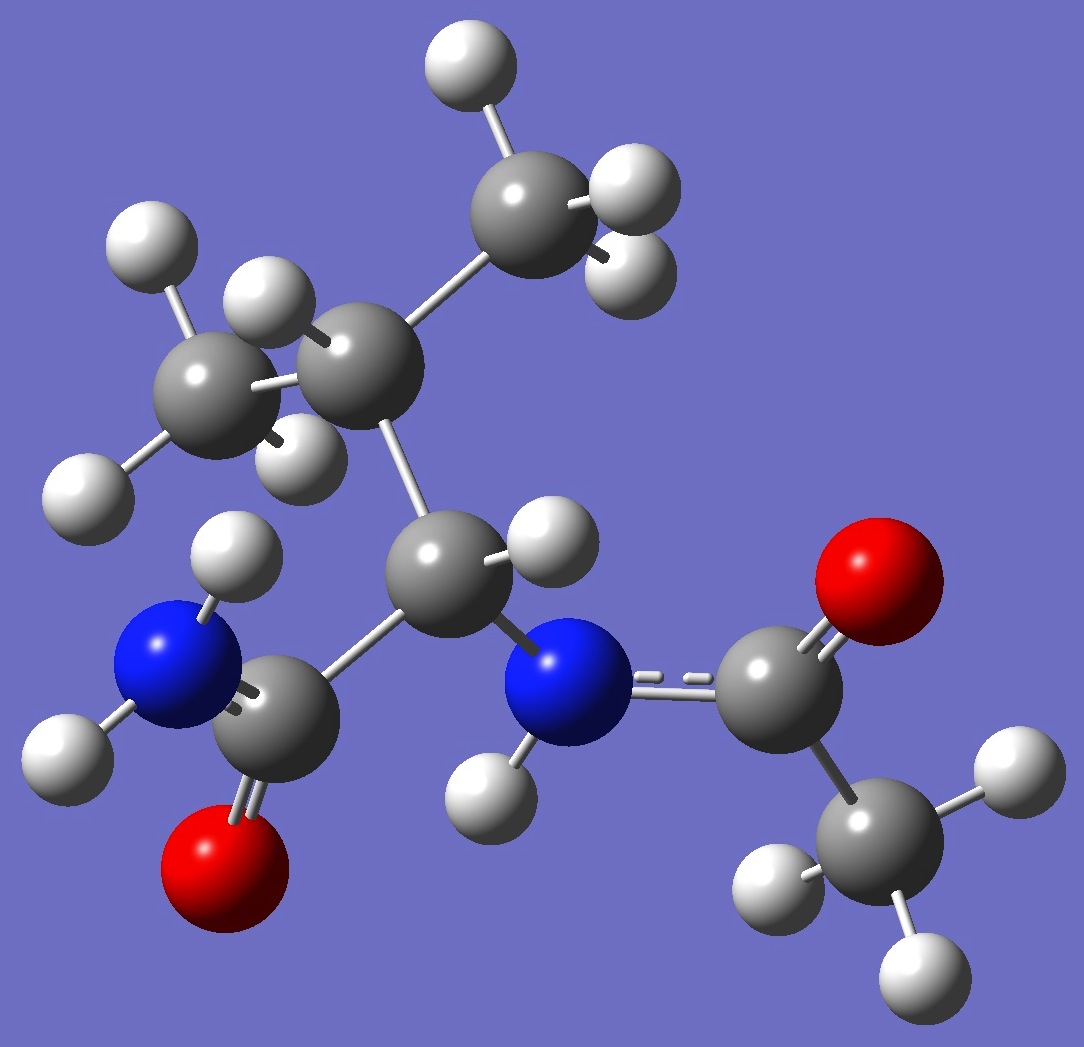

C5














































In Tables 1 and 2, subscripts a,b,c refer to the principal axes of the inertia tensor.  RMS is the root measn square difference between calculated and experimental nqcc's.  RSD is the residual standard deviation of calibration of the B3PW91/6-311+G(df,pd)  model for calculation of the efg's/nqcc's.


























Table 1.  14N nqcc's in C7 conformer of Ac_Val_NH2 (MHz).  Calculation was made on B3P86/6-31G(3d,3p) optimized structure.  Nc and Nt are respectively the central and terminal nitrogen.










Calc
Expt. [1]








Nc Xaa
1.958
2.024(5)


Xbb -
 2.886
 -
 2.987(11)


Xcc
0.928
0.962(11)


Xab
0.560




Xac -
 0.041




Xbc
2.195











RMS
0.072 (3.6 %)




RSD
0.030 (1.3 %)










Nt Xaa -
 0.457
 -
 0.769(7)


Xbb
1.888
1.902(13)


Xcc -
 1.431
 -
 1.133(13)


Xab -
 0.685




Xac -
 2.427




Xbc -
 0.387












RMS
0.249 (20. %)




RSD
0.030 (1.3 %)




































Table 2.  14N nqcc's in C5 conformer of Ac_Val_NH2 (MHz).  Calculation was made on B3P86/6-31G(3d,3p) optimized structure.  Nc and Nt are respectively the central and terminal nitrogen.










Calc
Expt. [1]








Nc Xaa
2.159
2.170(11)


Xbb -
 2.199
 -
 2.286(14)


Xcc
0.040
0.116(14)


Xab
0.539




Xac -
 0.082




Xbc -
 2.538











RMS
0.066 (4.3 %)




RSD
0.030 (1.3 %)










Nt Xaa
0.199
0.613(12)


Xbb -
 0.891 -
 0.925(15)


Xcc
0.692
0.312(15)


Xab -
 2.262




Xac -
 1.623




Xbc -
 1.946












RMS
0.325 (53. %)




RSD
0.030 (1.3 %)


































Table [3]  Ac_Val_NH2 Rotational Constants (MHz).  Calc = B3P86/6-31G(3d,3p) structures.








 Calc
     Expt [1]






C7 A
 1399.0
 1388.6071(22)


 B
   843.0
   840.91159(42)


C
   619.7
   619.86354(17)






C5 A
 1329.9
 1353.8151(58)


B
   835.8
   826.98719(28)


C
   660.2
   657.16182(21)

























[1] I.León, E.R.Alonso, S.Mata, C.Cabezas, M.A.Rodriquez, J.-U.Grabow, and J.L.Alonso, Phys.Chem.Chem.Phys. 19,24985(2017).
