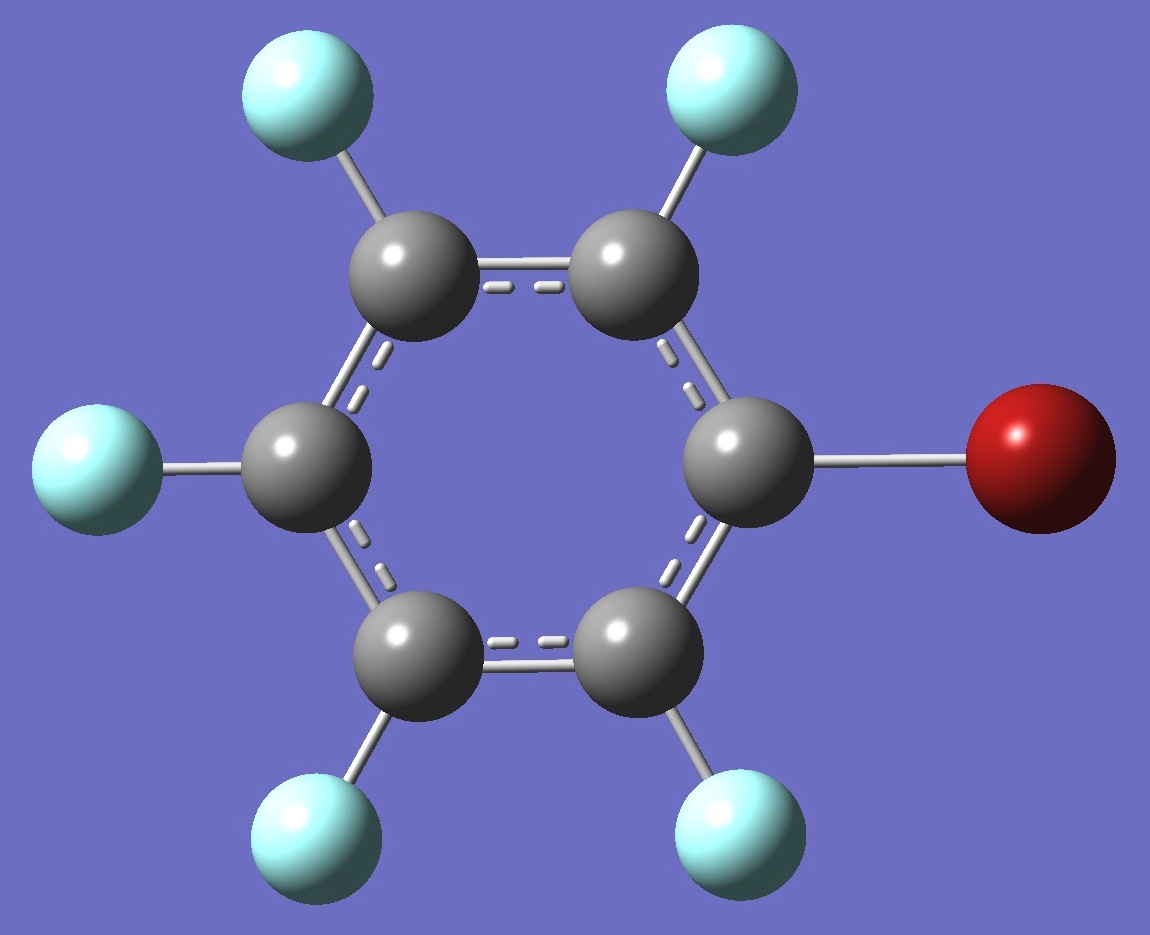

C6F5Br |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Bromine |
|
|
|
Nuclear
Quadrupole Coupling Constants |
|
|
|
in Bromopentafluorobenzene |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Bromine nqcc tensors in C6F5Br were calculated here on an ropt
molecular structure given by PBE1PBE/6-31G(3d,3p)
optimization. These are shown below in Table 1. Structure
parameters are compared with C6H5Br in Table 3. Rotational constants are given in Table 4.
|
|
|
|
|
|
|
|
|
|
|
|
|
In Table 1, subscripts a,b,c refer to principal axes of the inertia tensors. ETA = (Xbb - Xcc)/Xaa = (Xxx
- Xyy)/Xzz, where x,y,z refer to principal axes of the nqcc tensor. RSD
is the residual standard deviation of calibration of the B1LYP/TZV(3df,3p) model for calculation of the efg's/nqcc's. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
Table 1. Bromine nqcc's in C6F5Br (MHz). Calculation was made on the PBE1PBE/6-31G(3d,3p) ropt structure. |
|
| |
|
|
|
|
|
|
|
|
|
|
Calc. |
|
Expt.
|
|
|
|
|
|
|
|
|
|
|
79Br |
Xaa |
|
635.28 |
|
|
|
|
|
Xbb |
- |
346.13 |
|
|
|
|
|
Xcc |
- |
289.15 |
|
|
|
|
|
ETA |
- |
0.0897 |
|
|
|
|
|
|
|
|
|
|
|
|
|
RSD |
|
1.58 (0.39 %) |
|
|
|
|
|
|
|
|
|
|
|
|
81Br |
Xaa |
|
530.76 |
|
|
|
|
|
Xbb |
- |
289.18 |
|
|
|
|
|
Xcc |
- |
241.57 |
|
|
|
|
|
ETA |
- |
0.0897 |
|
|
|
|
|
|
|
|
|
|
|
|
|
RSD |
|
1.38 (0.40 %) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
Table 2. C6X5Br, X = H, F. PBE1PBE/6-31G(3d,3p) molecular structure parameters (Å and degrees).
|
| |
|
|
|
|
|
X = F
|
X = H
|
|
|
|
|
|
C(1)Br |
1.8489 |
1.8765 |
|
C(1)C(2) |
1.3893 |
1.3884 |
|
C(2)C(3) |
1.3881 |
1.3897 |
|
C(3)C(4) |
1.3884 |
1.3896 |
|
C(2)X(2) |
1.3234 |
1.0835 |
|
C(3)X(3) |
1.3233 |
1.0856 |
|
C(4)X(4) |
1.3216 |
1.0852 |
|
C(6)C(1)C(2) |
118.32 |
120.94 |
|
C(1)C(2)C(3) |
121.18 |
119.26 |
|
C(2)C(3)C(4) |
119.78 |
120.43 |
|
C(3)C(4)C(5) |
119.66 |
119.68 |
|
C(1)C(2)X(2) |
120.46 |
119.99 |
|
C(2)C(3)X(3) |
120.25 |
119.44 |
|
|
|
|
|
|
|
|
|
|
|
|
|
For further comparison, the PBE1PBE/6-31G(3d,3p) optimized molecular structure of benzene is CC =
1.3908 Å and CH = 1.0860 Å.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Table 3. C6F579Br Rotational Constants (MHz).
|
|
|
|
|
|
|
|
Calc /ropt |
Expt.
|
|
|
|
|
|
|
|
A
|
1034.0
|
|
|
|
B
|
499.1
|
|
|
|
C
|
336.6
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
