CH2F-CH2CN

























Nitrogen

Nuclear Quadrupole Coupling Constants


in 3-Fluoropropionitrile




















Calculations of the N nqcc tensors in 3-fluoropropionitrile, antiperiplanar and synclinal, were made on a molecular structures derived by MP2/aug-cc-pVTZ(G03) optimization with empirical correction of the  CC, CN, and CF bond lengths, re(1); and by MP2/6-311+G(3df,3pd) optimization also with empirical correction of the  CC, CN, and CF bond lengths, re(2).  These nqcc's are given in Tables 1 and 2.  Structure parameters are given in Table 3, rotational constants in Table 4.

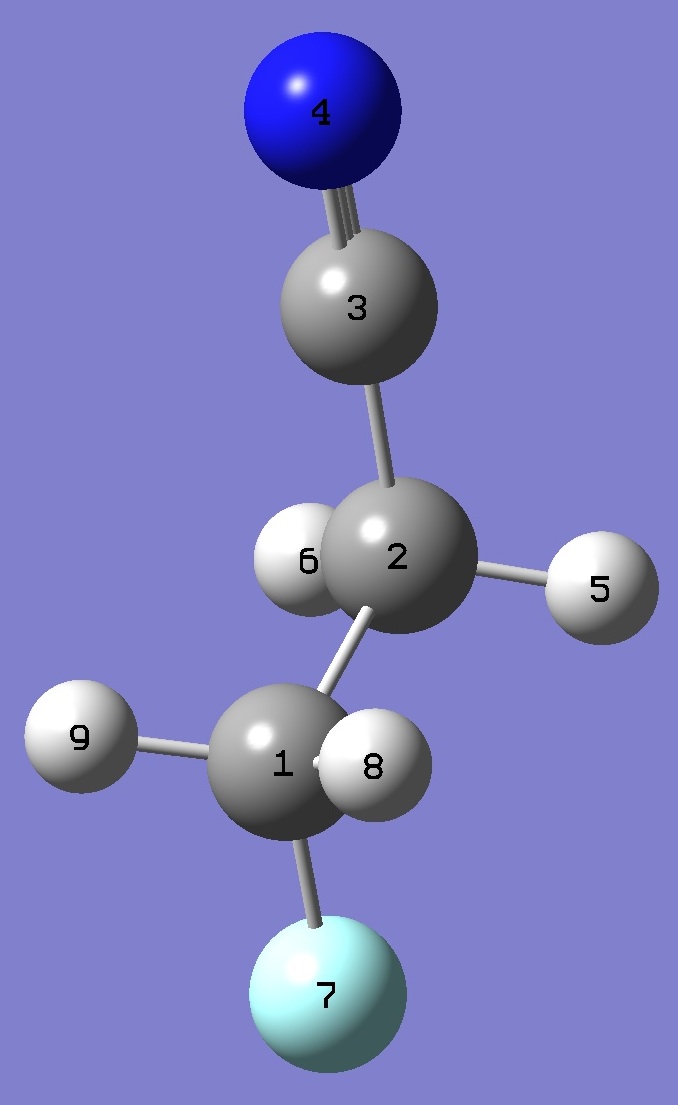

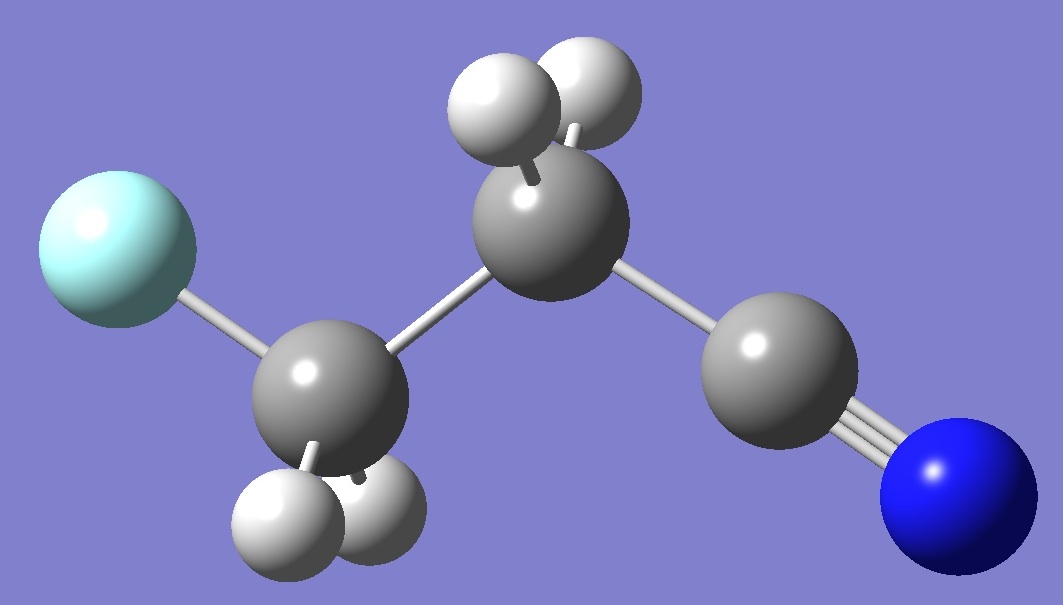

antiperiplanar

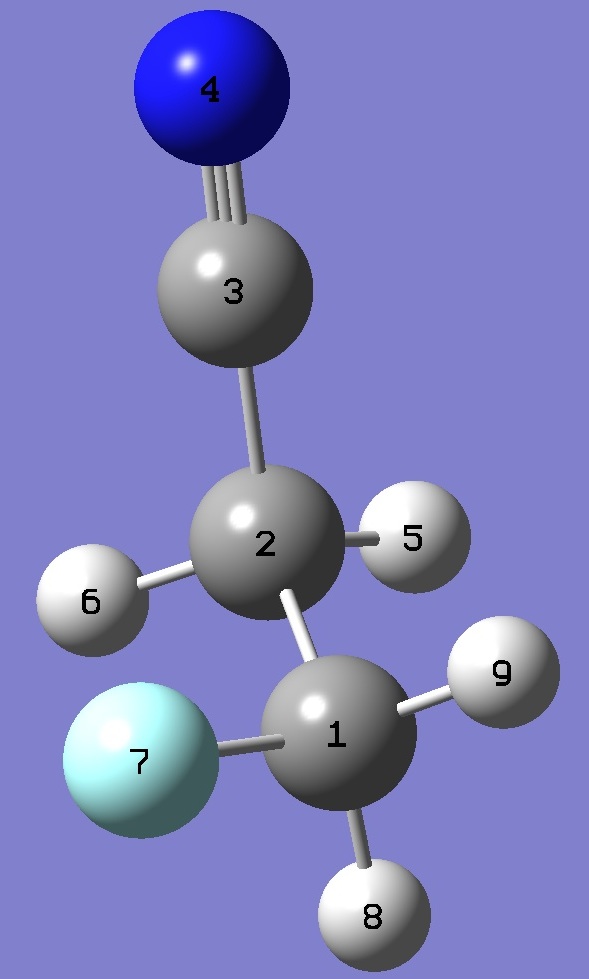

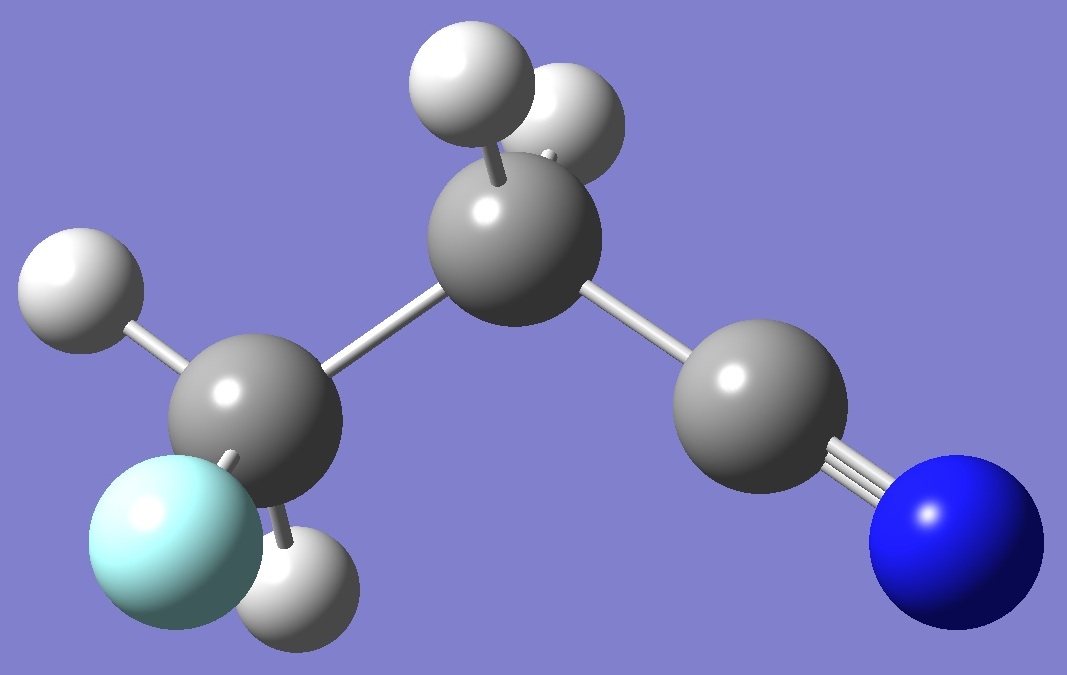

synclinal






















































In Tables 1 and 2, subscripts a,b,c refer to the principal axes of the inertia tensor, subscripts x,y,z to the principal axes of the nqcc tensor.  ETA = (Xxx - Xyy)/Xzz,  Ø (degrees) is the angle between its subscripted parameters.

RSD is the residual standard deviation of calibration of the B3PW91/6-311+G(df,pd) model for calculation of the nitrogen nqcc's.




























Table 1. Nitrogen nqcc's in antiperiplanar 3-Fluoropropionitrile (MHz).  Calculation was made on approximate equilibrium re(1) and re(2) structures.












Calc / re(1)
Calc / re(2)
Expt.









14N Xaa -
 3.416
 -
 3.417




Xbb
1.374
1.375




Xcc
2.042
2.043




|Xab|
2.245
2.242













RSD
0.030 (1.3 %)
0.030 (1.3 %)













Xxx
2.261
2.260




Xyy
2.042
2.043




Xzz -
 4.303
 -
 4.303




ETA -
 0.0509
 -
 0.0506




Øz,a
21.58
21.55




Øa,CN
22.16
22.11




Øz,CN
  0.58
  0.56







































Table 2. Nitrogen nqcc's in synclinal 3-Fluoropropionitrile (MHz).  Calculation was made on approximate equilibrium re(1) and re(2) structures.












Calc / re(1)
Calc / re(2)
Expt.









14N Xaa -
 1.924
 -
 1.922




Xbb -
 0.056
 -
 0.059




Xcc
1.980
1.981




Xab -
 2.995
 -
 2.996




Xac
0.858
0.855




Xbc
0.516
0.516













RSD
0.030 (1.3 %)
0.030 (1.3 %)













Xxx
2.235
2.234




Xyy
2.051
2.052




Xzz -
 4.286
 -
 4.286




ETA -
 0.0429
 -
 0.0424




Øz,CN
  0.11
  0.12



























Table 3.  3-Fluoropropionitrile.  Heavy atom structure parameters, approximate re(1) and re(2) (Å and degrees).  Complete structures are given here:  antiperiplanar, synclinal.





    antiperiplanar
 re(1)  re(2)






FC(1) 1.3797
1.3796

C(1)C(2) 1.5195
1.5192

C(2)C(3) 1.4590
1.4593

C(3)N 1.1557
1.1558

FC(1)C(2) 108.17
108.20

C(1)C(2)C(3) 110.22
110.24

C(2)C(3)N 177.83
177.88

FC(1)C(2)C(3) 180.
 180.

C(1)C(2)C(3)N     0.
     0.





      synclinal
 re(1)  re(2)






FC(1) 1.3782
 1.3778

C(1)C(2) 1.5164
 1.5161

C(2)C(3) 1.4604
 1.4604

C(3)N 1.1557
 1.1557

FC(1)C(2) 109.42
 109.41

C(1)C(2)C(3) 112.07
 112.02

C(2)C(3)N 179.26
 179.35

FC(1)C(2)C(3)   65.64
   65.40

C(1)C(2)C(3)N   49.76
   50.79































Table 4.  3-Fluoropropionitrile.  Rotational Constants (MHz).











antiperiplanar
 Calc re(1) Calc re(2) Expt [1]






A
 27219.4
 27261.3
 27009(11)

B
   2309.8
   2308.9
 2292.0710(76)

C
   2187.5
   2186.9
 2170.9069(76)





synclinal
 Calc re(1) Calc re(2) Expt [1]






A
 11631.1
 11618.0
 11635.6040(46)

B
   3215.9
   3222.5
 3178.2835(12)

C
   2733.6
   2736.8
 2705.7206(11)





















[1] H.Møllendal, S.Samdal, and J.-C.Guillemin, J.Phys.Chem. A 116,1015(2012).
