C5H5-CN
	Nitrogen
	Nuclear Quadrupole Coupling Constants
		in 1-Cyano-1,3-cyclopentadiene
	The microwave spectrum of 1-cyano-1,3-cyclopentadiene has been investigated by Ford and Seitzman [1].  Rotational constants and dipole moments were determined.
	The 14N nqcc tensor was calculated here on a molecular structure given by MP2/6-311+G(3df,3pd) optimization with approximate equilibrium C-CN bond lengths.  These calculated nqcc's are given in Table 1, structure parameters in Table 2, rotational constants and dipole moments in Table 3.
	(Visit this link for more concerning this molecule.)
	In Table 1, subscripts a,b,c refer to the principal axes of the inertia tensor, subscripts x,y,z to the principal axes of the nqcc tensor.  The nqcc y-axis is chosen coincident with the inertia c-axis, these are perpendicular to the Cs plane of the molecule.  ETA = (Xxx - Xyy)/Xzz.  Ø (degrees) is the angle between its subscripted parameters.
	RSD is the residual standard deviation of calibration of the B3PW91/6-311+G(df,pd) model for calculation of the efg's/nqcc's.
	Table 1. Nitrogen nqcc's in 1-Cyano-1,3-cyclopentadiene (MHz).     Calc. Expt.     14N Xaa - 4.166 Xbb 2.354 Xcc 1.812 Xab - 0.200   RSD 0.030 (1.3 %)   Xxx 2.360 Xyy 1.812 Xzz - 4.172 ETA 0.132 Øz,a 1.76 Øa,CN 2.25 Øz,CN 0.49

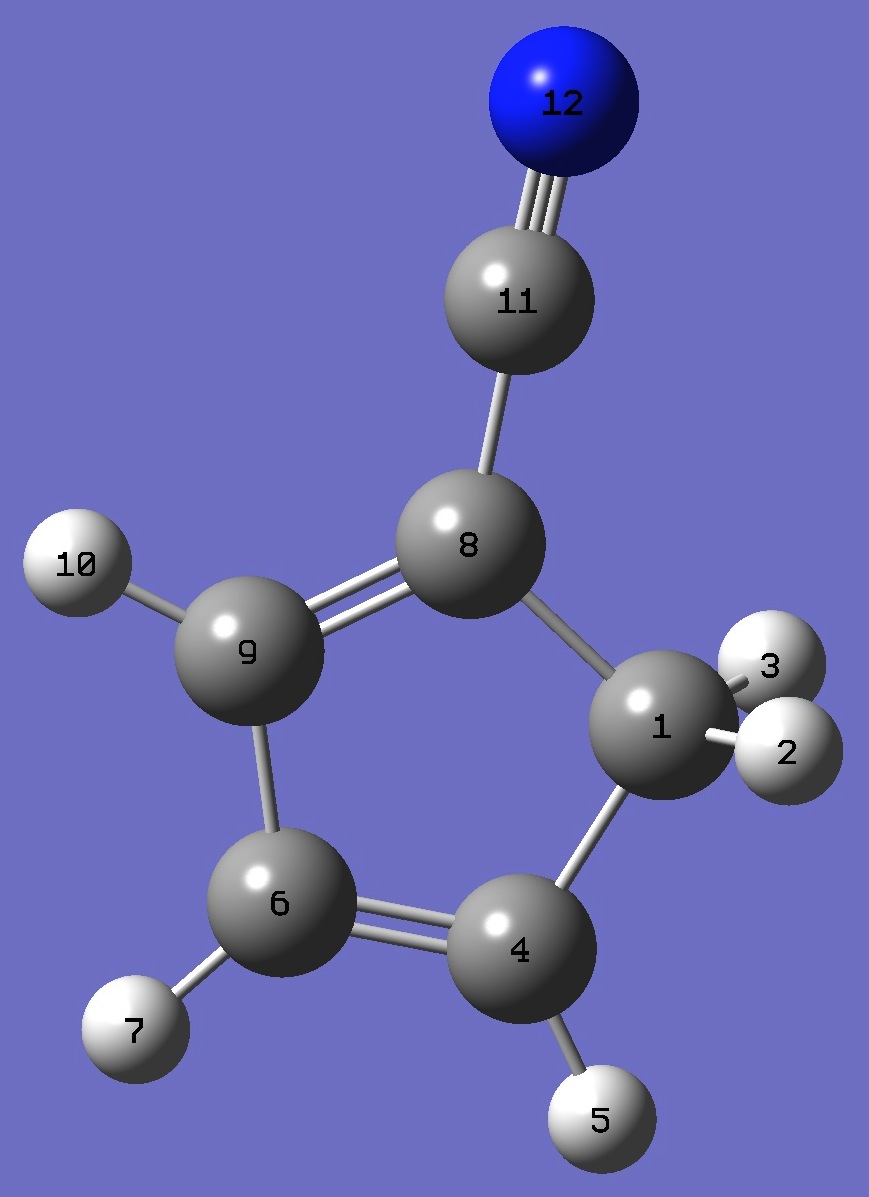

	Table 2.  1-Cyano-1,3-cyclopentadiene.  Molecular structure parameters (Å and degrees).       MP2/6-311+G(3df,3pd) opt structure with approximate equilibrium bond lengths given in parentheses.    C  H,1,B1  H,1,B2,2,A1  C,1,B3,3,A2,2,D1,0  H,4,B4,1,A3,3,D2,0  C,4,B5,1,A4,3,D3,0  H,6,B6,4,A5,1,D4,0  C,1,B7,4,A6,6,D5,0  C,8,B8,1,A7,4,D6,0  H,9,B9,8,A8,1,D7,0  C,8,B10,1,A9,4,D8,0  N,11,B11,9,A10,8,D9,0    B1=1.09370892  B2=1.09370892  B3=1.49296096  B4=1.07946805  B5=1.35370681  B6=1.07961602  B7=1.50045609  B8=1.3599325  B9=1.08016087  B10=1.41547184      (1.4185)  B11=1.17418723      (1.1594)  A1=107.06526942  A2=112.27749818  A3=123.89902261  A4=109.5152913  A5=126.10803111  A6=102.95448667  A7=109.26832095  A8=125.25960199  A9=123.72727626  A10=155.4285791  D1=-123.66243328  D2=60.3500046  D3=-119.6499954  D4=180.  D5=0.  D6=0.  D7=180.  D8=180.  D9=180.
	Table 3.  1-Cyano-1,3-cyclopentadiene  Rotational Constants (MHz) and Dipole Moments * (D).  Calc Expt. [1]  A 8407.2   8356  B 1910.5   1904.24  C 1571.8   1565.36 |µa|  4.69    4.25 |µb|  0.34 < 0.3 * B3PW91/6-311+G(df,pd) calculation on the MP2 structure.
	[1] R.G.Ford and H.A.Seitzman, J.Mol.Spectrosc. 69,326(1978).
