HCC-CH2CH2CH2CN
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Nitrogen
|
|
|
Nuclear
Quadrupole Coupling Constants |
|
|
|

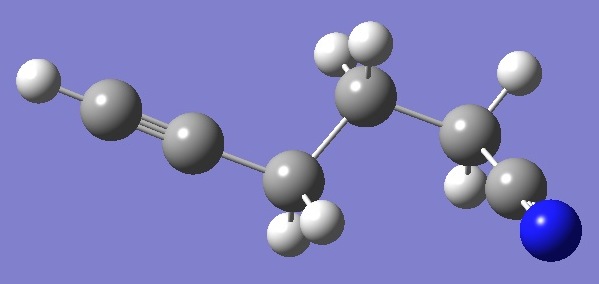

in 5-Hexynenitrile anti-gauche |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Calculation of the nitrogen nqcc's in the anti-gauche conformer of 5-hexynenitrile was made on an approximate equilibrium molecular structure (~ re) derived ab
initio as described here. These nqcc's are
compared in Table 1 with the experimental values of Utzat et al. [1].
Structure parameters are given in Table 2, rotational constants in Table 3. |
|
|
|
|
|
|
|
|
|
|
|
|
Subscripts a,b,c refer to the principal axes of the inertia
tensor, subscripts x,y,z to the principal axes of the nqcc tensor. Øz,CN (degrees)
is the angle between the z-principal axis and the CN bond axis. ETA = (Xxx
- Xyy)/Xzz. |
|
|
|
|
|
|
|
|
|
|
|
|
RMS is the root mean square
difference between calculated and experimental nqcc's (percentage of
average experimental nqcc). RSD is the residual standard deviation
of calibration of the B3PW91/6-311+G(df,pd) model for calculation of
the nqcc's, which may be taken as an estimate of the uncertainty in the calculated nqcc's. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
Table 1.
Nitrogen nqcc's in 5-Hexynenitrile, anti-gauche (MHz). Calcculation was made on the ~ re structure. |
|
| |
|
|
|
|
|
|
|
|
|
|
|
Calc. |
|
Expt. [1] |
|
| |
|
|
|
|
|
|
|
|
14N |
Xaa |
|
0.514 |
|
0.502(5) |
|
|
|
Xbb |
- |
2.503 |
- |
2.493(3) |
|
|
|
Xcc |
|
1.990 |
|
1.991 |
|
|
|
|Xab| |
|
2.782 * |
|
|
|
|
|
|Xac| |
|
0.392 |
|
|
|
|
|
|Xbc| |
|
0.577 |
|
|
|
|
|
|
|
|
|
|
|
|
|
RMS |
|
0.009 (0.55 %) |
|
|
|
|
|
RSD |
|
0.030 (1.3 %) |
|
|
|
|
|
|
|
|
|
|
|
|
|
Xxx |
|
2.185 |
|
|
|
|
|
Xyy |
|
2.053 |
|
|
|
|
|
Xzz |
- |
4.238 |
|
|
|
|
|
ETA |
- |
0.031 |
|
|
|
|
|
Øz,CN |
|
0.25 |
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
* The algebraic sign of the product XabXacXbc is negative. |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|

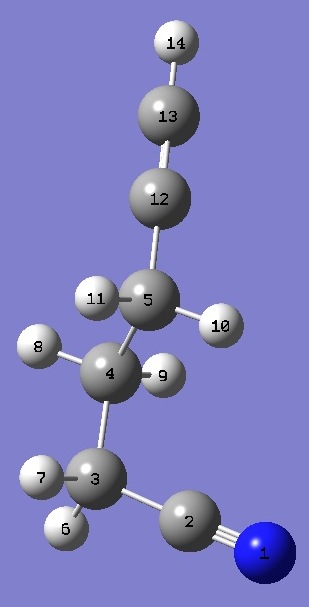

| Table 2. 5-Hexynenitrile, anti-gauche. Heavy atom molecular structure parameters (Å
and degrees). ~ re with interatomic angles given by MP2/6-311+G(2d,p) optimization. Complete structure is given here in Z-matrix format. |
| |
|
|
|
|
|
NC(2) |
1.1564 |
|
C(2)C(3) |
1.4622 |
|
C(3)C(4) |
1.5282 |
|
C(4)C(5) |
1.5274 |
|
C(5)C(12) |
1.4594 |
|
C(12)C(13) |
1.203 (assumed) |
|
NC(2)C(3) |
178.58 |
|
C(2)C(3)C(4) |
111.82 |
|
C(3)C(4)C(5) |
112.11 |
|
C(4)C(5)C(12) |
111.66 |
|
C(5)C(12)C(13) |
178.42 |
|
Click on image to enlarge. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
| Table 3.
Rotational Constants (MHz). |
|
|
|
|
|
|
Calc. ~ re |
Expt. [1] |
|
|
|
|
|
A |
7 384.8 |
7 372.7740(6) |
|
B |
1 201.8 |
1 191.17918(15) |
|
C |
1 088.3 |
1 078.87035(9) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[1] K.A.Utzat, Ph.D Dissertation, University of Connecticut, 2004. Advisor: R.K.Bohn. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
