C6H10N2
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Nitrogen
|
|
|
Nuclear
Quadrupole Coupling Constants |
|
|
|
in 2,3-Diazabicyclo[2.2.2]-Octene |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Calculation was made of the 14N
nqcc tensor in 2,3-diazabicyclo[2.2.2]-octene on molecular structures
given by B3P86 and PBE1PBE optimization each with bases 6-31G(d,p)
and 6-31G(3d,3p) bases. These nqcc's are shown in Tables 1 and 2.
Heavy atom structure parameters are given in Table 3, rotational constants in Table 4.
|
|
|
|
|
|
|
|
|
|
|
|
|
In Tables 1 and 2, subscripts a,b,c refer to the principal axes of the inertia
tensor, subscripts x,y,z to the principal axes of the nqcc tensor. Ø (degrees)
is the angle between its subscripted parameters. ETA = (Xxx
- Xyy)/Xzz. RSD is the residual standard deviation
of calibration of the model for calculation of
the nqcc's. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
Table 1. 14N nqcc's in 2,3-Diazabicyclo[2.2.2]-octene (MHz). |
|
| |
|
|
|
|
|
|
|
|
|
|
|
Calc (1) B3P86/6-31G(d,p) structure. |
|
|
|
|
Calc (1) B3P86/6-31G(3d,3p) structure. |
|
|
|
|
|
|
|
|
|
|
|
|
|
Calc. (1)
|
|
Calc. (2) |
|
Expt. |
|
| |
|
|
|
|
|
|
|
|
|
Xaa |
|
3.838 |
|
3.854 |
|
|
|
|
Xbb |
- |
0.322 |
- |
0.340 |
|
|
|
|
Xcc |
- |
3.517 |
- |
3.514 |
|
|
|
|
Xbc |
± |
2.955 |
± |
2.959 |
|
|
|
|
|
|
|
|
|
|
|
|
|
RSD |
|
0.030 (1.3 %) |
0.030 (1.3 %) |
|
|
|
|
|
|
|
|
|
|
|
|
Xxx |
|
1.440 |
|
1.431 |
|
|
|
|
Xyy |
|
3.838 |
|
3.854 |
|
|
|
|
Xzz |
- |
5.278 |
- |
5.285 |
|
|
|
|
ETA |
|
0.454 |
|
0.458 |
|
|
|
|
Øz,b |
|
59.20 |
|
59.10 |
|
|
|
|
Øb,bi* |
|
57.38 |
|
57.37 |
|
|
|
|
Øz,bi* |
|
1.82 |
|
1.73 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
* bi is the bisector of the C(1)N(2)N(3) angle. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
Table 2. 14N nqcc's in 2,3-Diazabicyclo[2.2.2]-octene (MHz). |
|
| |
|
|
|
|
|
|
|
|
|
|
|
Calc (1) PBE1PBE/6-31G(d,p) structure. |
|
|
|
|
Calc (1) PBE1PBE/6-31G(3d,3p) structure. |
|
|
|
|
|
|
|
|
|
|
|
|
|
Calc. (1)
|
|
Calc. (2) |
|
Expt. |
|
| |
|
|
|
|
|
|
|
|
|
Xaa |
|
3.850 |
|
3.865 |
|
|
|
|
Xbb |
- |
0.336 |
- |
0.345 |
|
|
|
|
Xcc |
- |
3.515 |
- |
3.520 |
|
|
|
|
Xbc |
± |
2.960 |
± |
2.964 |
|
|
|
|
|
|
|
|
|
|
|
|
|
RSD |
|
0.030 (1.3 %) |
0.030 (1.3 %) |
|
|
|
|
|
|
|
|
|
|
|
|
Xxx |
|
1.435 |
|
1.430 |
|
|
|
|
Xyy |
|
3.850 |
|
3.865 |
|
|
|
|
Xzz |
- |
5.285 |
- |
5.295 |
|
|
|
|
ETA |
|
0.457 |
|
0.460 |
|
|
|
|
Øz,b |
|
59.12 |
|
59.08 |
|
|
|
|
Øb,bi* |
|
57.38 |
|
57.40 |
|
|
|
|
Øz,bi* |
|
1.74 |
|
1.69 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
* bi is the bisector of the C(1)N(2)N(3) angle. |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
| Table 3. 2,3-Diazabicyclo[2.2.2]-Octene. Heavy atom structure parameters, ropt (Å and degrees). |
| |
|
|
|
|
|
B3P86/6-31G |
PBE1PBE/6-31G |
|
(d,p) |
(3d,3p) |
(d,p) |
(3d,3p) |
|
|
|
|
|
| C(1)N(2) |
1.4789 |
1.4763 |
1.4768 |
1.4739 |
| N(2)C(3) |
1.2486 |
1.2459 |
1.2461 |
1.2434 |
| C(4)C(5) |
1.5368 |
1.5350 |
1.5354 |
1.5338 |
| C(5)C(8) |
1.5390 |
1.5376 |
1.5378 |
1.5369 |
| C(8)C(1)N(2) |
108.01 |
108.04 |
108.04 |
108.03 |
| C(1)N(2)N(3) |
114.76 |
114.74 |
114.76 |
114.79 |
| C(4)C(5)C(8) |
107.97 |
107.91 |
107.93 |
107.89 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

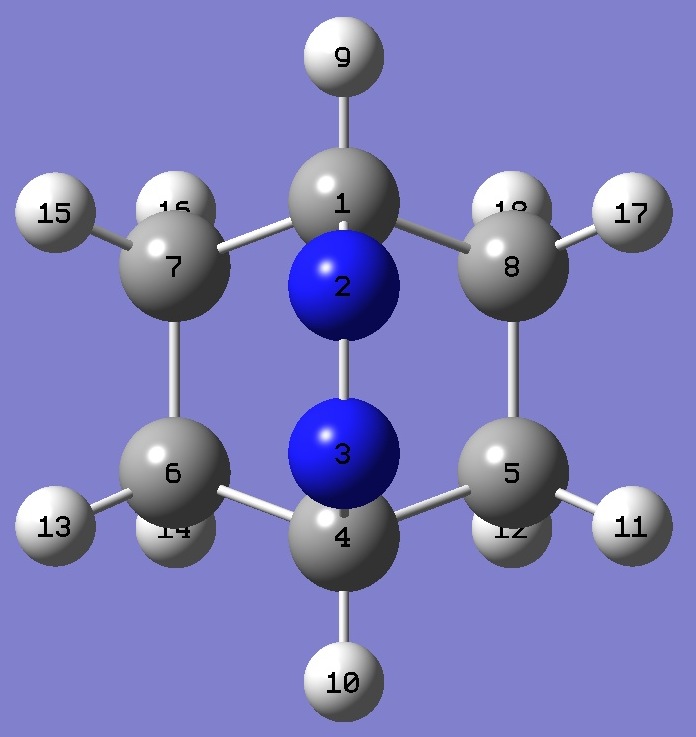

Atomic Numbering |
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Click on image to enlarge. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
| Table 3. 2,3-Diazabicyclo[2.2.2]-Octene. Rotational Constants (MHz). |
| |
|
|
|
|
|
|
B3P86/6-31G |
PBE1PBE/6-31G |
Expt [1] |
|
(d,p) |
(3d,3p) |
(d,p) |
(3d,3p) |
|
|
|
|
|
|
|
| A |
2690.9 |
2699.4 |
2697.0 |
2704.6 |
2677.580(2) |
| B |
2654.7 |
2660.4 |
2659.0 |
2665.6 |
2642.397(2) |
| C |
2533.4 |
2539.5 |
2538.0 |
2542.9 |
2519.603(4) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[1] M.D.Harmony, T.L.Talkington, and R.N.Nandi, J.Mol.Struct. 125,125(1984). |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
