CF3CH2C(=O)Cl |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Chlorine |
|
|
|
Nuclear
Quadrupole Coupling Constants |
|
|
|
in
3,3,3-Trifluoropropionyl Chloride
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

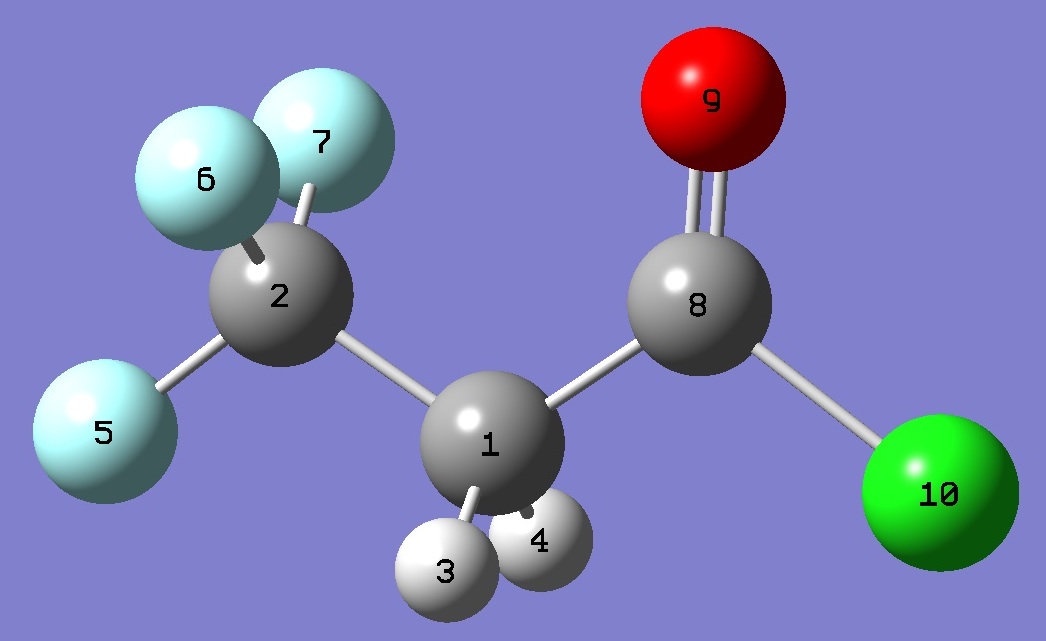

Calculation of the chlorine nqcc's in
3,3,3-trifluoropropionyl chloride was made on an approximate equilibrium structure
derived by MP2/aug-cc-pVTZ optimization with empirically corrected bond
lengths. These calculated nqcc's are compared with the
experimental values [1] in Table 1. Structure parameters are
given in Table 2, rotational constants in Table 3.
|
|
|
|
|
|
|
|
|
|
|
|
|
In Table 1, subscripts a,b,c refer to
the
principal axes of the inertia tensor; x,y,z to the principal axes
of the nqcc tensor. The nqcc y-axis is chosen coincident with the
inertia c-axis, these are perpendicular to the molecular symmetry
plane.
Ø (degrees) is the angle between its subscripted
parameters. ETA = (Xxx - Xyy)/Xzz. |
|
|
RMS
is the root mean square difference between calculated and experimental
diagonal nqcc's (percent of average experimental nqcc's). RSD is
the calibration residual standard deviation for the
B1LYP/TZV(3df,2p) model for calculation of the chlorine nqcc's, which
may be taken as an estimate of the uncertainty in the calculated
coupling constants. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
Table 1. Chlorine
nqcc's in CF3CH2C(=O)Cl (MHz). Calculation
was made on the approximate equilibrium structure.
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
Calc. |
|
Expt. [1] |
|
| |
|
|
|
|
|
|
|
|
35Cl |
Xaa |
- |
43.28 |
- |
43.9356(48)
|
|
|
|
Xbb |
|
20.99
|
|
20.8327(65)
|
|
|
|
Xcc |
|
22.29 |
|
23.1119(44)
|
|
|
|
|Xab| |
|
38.90 |
|
37.891(49)
|
|
|
|
|
|
|
|
|
|
|
|
RMS
|
|
0.61 (2.1 %)
|
|
|
|
|
|
RSD |
|
0.49 (1.1 %) |
|
|
|
|
|
|
|
|
|
|
|
|
|
Xxx |
|
39.31 |
|
38.293(38)
|
|
|
|
Xyy |
|
22.29 |
|
23.1119(44)
|
|
|
|
Xzz |
- |
61.60 |
-
|
61.396(37)
|
|
|
|
ETA |
- |
0.276 |
-
|
0.24726(64)
|
|
|
|
Øz,a |
|
25.22 |
|
|
|
|
|
Øa,CCl |
|
25.56 |
|
|
|
|
|
Øz,CCl |
|
0.34 |
|
|
|
|
|
|
|
|
|
|
|
|
37Cl |
Xaa |
- |
34.45 |
|
|
|
|
|
Xbb |
|
16.88
|
|
|
|
|
|
Xcc |
|
17.57 |
|
|
|
|
|
|Xab| |
|
30.37 |
|
|
|
|
|
|
|
|
|
|
|
|
|
RMS
|
|
0.49 (2.1 %)
|
|
|
|
|
|
RSD |
|
0.44 (1.1 %) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
Table 2. CF3CH2C(=O)Cl
Selected structure parameters (Å and degrees). Complete
structure is given here in Z-matix
format.
|
| |
|
|
|
Parameter
|
reapprox |
|
|
| C(2)C(1) |
1.5086 |
| C(1)C(8) |
1.5034 |
| C(1)=O |
1.1811 |
| C(8)Cl |
1.7847 |
| C(2)C(1)C(8) |
113.29 |
| C(1)C(8)=O |
128.08
|
| C(1)C(8)Cl |
110.22
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Table
3. CF3CH2C(=O)35Cl Rotational
Constants (MHz). Calc is on the reapprox
molecular structure.
|
|
|
|
|
|
|
|
|
Calc.
|
Expt. [1]
|
|
|
|
|
|
|
|
A
|
3646.7
|
3637.61878(33)
|
|
|
B
|
919.3
|
911.41286(16)
|
|
|
C
|
846.8
|
840.62766(11)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[1] W.C.Bailey, R.A.Powoski, and
S.A.Cooke, J.Mol.Spectrosc. 273,1(2012).
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
