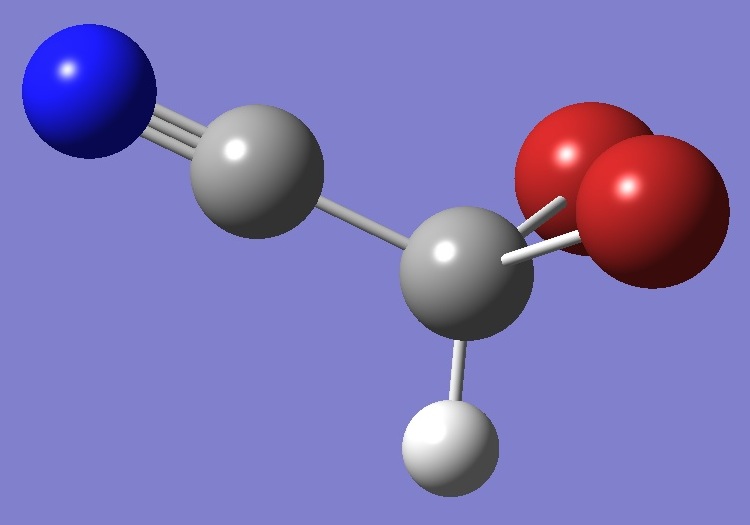

CHBr2CN













Nitrogen and Bromine


Nuclear Quadrupole Coupling Constants


in Dibromoacetonitrile




















Calculation of N and Br nqcc tensors in bromoacetonitrile was made on structures given by (1) MP2/aug-cc-pVTZ and (2) MP2/6-311+G(3df,3pd) optimization, each with approximate equilibrium (~re) correction for CC, CN, and CBr bond lengths.  These nqcc's are given in Tables 1 - 5.  Structure parameters are given in Table 6, rotational constants in Table 7.

In Tables 1 - 5, subscripts a,b,c refer to principal axes of the inertia tensor, subscripts x,y,z to principal axes of the  nqcc tensor.  Ø (degrees) is the angle between its subscripted parameters.  ETA = (Xxx - Xyy)/Xzz.
RSD is the residual standard deviation of the calibration of the computional model for calculation of the nqcc's.










Table 1.  14N nqcc's in CH79Br2CN (MHz).  Calculation was made on (1) MP2/aug-cc-pVTZ optimized structure with ~re bond lengths, and (2) MP2/6-311+G(3df,3pd) optimized structure with ~re bond lengths.









Calc (1)

Calc (2)
Expt.







Xaa 2.167 2.172
Xbb - 3.782 - 3.789
Xcc 1.615 1.616
Xbc - 1.836 - 1.828

RSD 0.030 (1.3 %) 0.030 (1.3 %)

Xxx 2.180 2.177
Xyy 2.167 2.172
Xzz - 4.347 - 4.349
ETA - 0.0031 - 0.0010
Øz,b 17.11 17.04
Øb,CN 17.53 17.54
Øz,CN   0.41   0.50











Table 2.  79Br nqcc's in CH79Br2CN (MHz).  Calculation was made on (1) MP2/aug-cc-pVTZ optimized structure with ~re bond lengths, and (2) MP2/6-311+G(3df,3pd) optimized structure with ~re bond lengths.









Calc (1)

Calc (2)
Expt







Xaa 355.79 357.57
Xbb - 114.52 - 114.33
Xcc - 241.27 - 243.23
Xab +/- 373.88 +/- 375.12
Xac -/+ 244.34 -/+ 243.01
Xbc - 144.74 - 144.18

RSD 1.58 (0.39 %) 1.58 (0.39 %)

Xxx - 335.91 - 336.71
Xyy - 316.58 - 317.00
Xzz 652.49 653.71
ETA - 0.0296 - 0.0302
Øz,CBr 0.79 0.83











Table 3.  14N and 81Br nqcc's in CH81Br2CN (MHz).  Calculation was made on (1) MP2/aug-cc-pVTZ optimized structure with ~re bond lengths, and (2) MP2/6-311+G(3df,3pd) optimized structure with ~re bond lengths.









Calc (1)

Calc (2)
Expt.







Xaa(14N) 2.167 2.172
Xbb - 3.780 - 3.787
Xcc 1.614 1.615
Xbc - 1.838 - 1.831

RSD 0.030 (1.3 %) 0.030 (1.3 %)

Xaa(81Br) 297.25 298.74
Xbb - 95.58 - 95.43
Xcc - 201.67 - 203.31
Xab +/- 312.44 +/- 313.48
Xac -/+ 204.02 -/+ 202.91
Xbc - 120.89 - 120.42

RSD 1.38 (0.40 %) 1.38 (0.40 %)












Table 4.  14N and 79Br nqcc's in CH79Br81BrCN (MHz).  Calculation was made on (1) MP2/aug-cc-pVTZ optimized structure with ~re bond lengths, and (2) MP2/6-311+G(3df,3pd) optimized structure with ~re bond lengths.









Calc (1)

Calc (2)
Expt.







Xaa(14N) 2.166 2.172
Xbb - 3.781 - 3.788
Xcc 1.614 1.616
Xab -/+ 0.037 -/+ 0.037
Xac -/+ 0.011 -/+ 0.011
Xbc - 1.837 - 1.830

RSD 0.030 (1.3 %) 0.030 (1.3 %)

Xaa(79Br) 350.86 352.64
Xbb - 109.70 - 109.51
Xcc - 241.17 - 243.13
Xab -/+ 376.83 -/+ 378.07
Xac +/- 243.55 +/- 242.22
Xbc - 146.17 - 145.82

RSD 1.58 (0.39 %) 1.58 (0.39 %)




















Table 5.  81Br nqcc's in CH79Br81BrCN (MHz).  Calculation was made on (1) MP2/aug-cc-pVTZ optimized structure with ~re bond lengths, and (2) MP2/6-311+G(3df,3pd) optimized structure with ~re bond lengths.









Calc (1)

Calc (2)
Expt.

Xaa(81Br) 301.34 302.82
Xbb - 99.58 - 99.43
Xcc - 201.76 - 203.40
Xab +/- 309.93 +/- 310.60
Xac -/+ 204.68 -/+ 203.56
Xbc - 119.51 - 119.05

RSD 1.38 (0.40 %) 1.38 (0.40 %)




Table 6.  CHBr2CN.  Molecular structure parameters (Å and degrees).  ~re(1) = MP2/aug-cc-pVTZ optimized structure with ~re bond lengths;  ~re(2) = MP2/6-311+G(3df,3pd) optimized structure with ~re bond lengths.

~re (1) ~re (2)
CBr 1.9326 1.9360
CC 1.4494 1.4501
CN 1.1575 1.1575
CH 1.0842 1.0844
Br···Br 3.2108 3.2177
CCBr 109.84 109.94
CCH 110.92 110.87
CCN 179.62 * 179.72 *

* CN tilts away from Bromines.




Table 7.  CH79Br2CN (MHz).   Rotational Constants (MHz).  ~re(1) = MP2/aug-cc-pVTZ optimized structure with ~re bond lengths;  ~re(2) = MP2/6-311+G(3df,3pd) optimized structure with ~re bond lengths.

~re (1) ~re (2)   Expt.
A 2513.7 2507.8
B 1219.0 1214.0
C   842.2   839.1
