(CH2)3CHCN













































Nitrogen


Nuclear Quadrupole Coupling Constants

in eq Cyclobutyl Cyanide




















Calculation of the nitrogen nqcc tensor in equatorial cyclobutyl cyanide was made on an ropt structure obtained by MP2/6-311+G(3df,3pd) optimization with approximate equilibrium C-CN bond lengths.  These are compared with the experimental nqcc's [1,2] in Table 1.  Structure parameters are given in Table 2, rotational constants and dipole moments in Table 3.











In Table 1, subscripts a,b,c refer to the principal axes of the inertia tensor; x,y,z to the principal axes of the nqcc tensor.  Ø (degrees) is the angle between its subscripted parameters.  ETA = (Xxx - Xyy)/Xzz.

RMS is the root mean square difference between calculated and experimental diagonal nqcc's (percentage of the average of the magnitudes of the experimental nqcc's).  RSD is the calibration residual standard deviation of the B3PW91/6-311+G(df,pd) model for calculation of the nitrogen nqcc's.





























Table 1.  14N nqcc's in eq Cyclobutyl Cyanide (MHz).  Calculation was made on the ropt structure.











Calc
Expt [1]
Expt [2]









Xaa - 3.661
- 3.663(5)
-
3.63807(61)


Xbb
2.146

2.086(6)

2.16284(72)


Xcc
1.515

1.577(6)

1.47524(72)


|Xac|
1.767














RMS

0.036 (1.5 %)
0.028 (1.2 %)

RSD
0.030 (1.3 %)














Xxx
2.062






Xyy
2.146





Xzz -
4.207






ETA
0.0203






Øz,a
17.16






Øa,CN
17.53






Øz,CN
  0.37

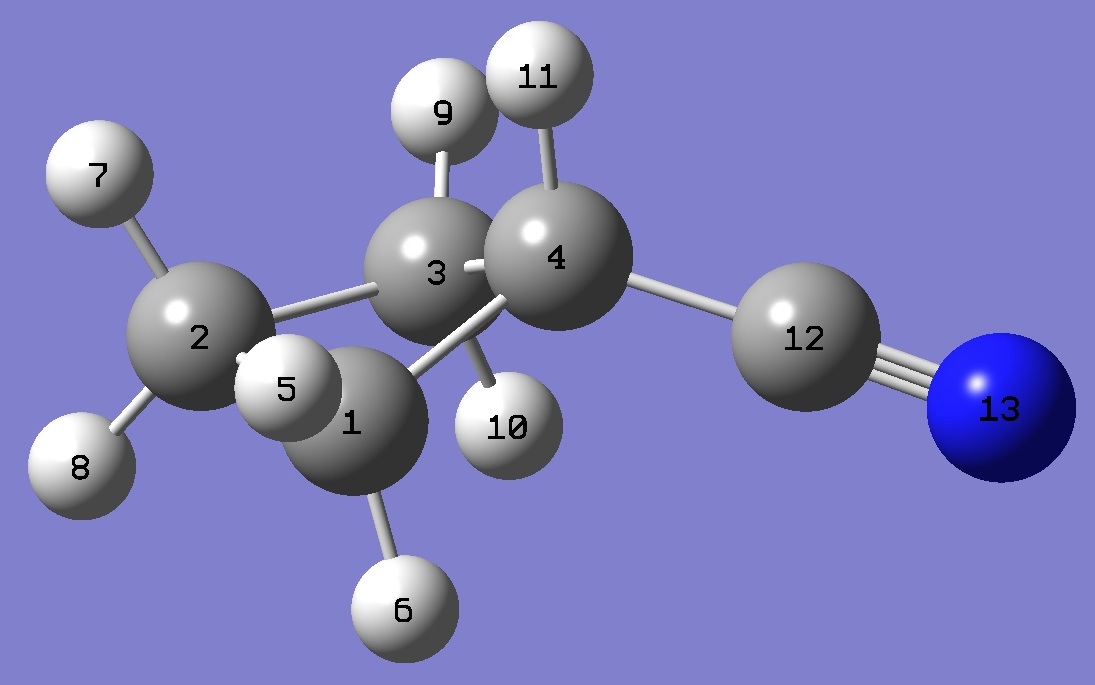

Table 2.  eq Cyclobutyl Cyanide.  Heavy atom structure parameters, ropt (Å and degrees).  Complete ropt structure is given here in Z-matrix format.






  ropt





C(1,3)C(4) 1.5504

C(4)C(12)
1.4517

C(12)N 1.1572

C(1)C(4)C(3)   87.64

C(4)C(12)N 177.98

C(1)C(2)C(3)C(4)   22.61

























Table 3.  eq Cyclobutyl Cyanide.  Rotational constants (MHz) and dipole moments (D).






ropt Expt [1]





A
9985.0
9761.607(35)

B
2390.9
2383.359(8)

C
2114.9
2105.109(9)





a|
4.33
4.00(3)

b| 0 (symmetry)
0 (symmetry)

c| 0.87
0.95(2)























[1] M.Y.Fong and M.D.Harmony, J.Chem.Phys. 58,4260(1973).


[2] Dissertation, Frohman, Daniel, "Fourier Transform Microwave Spectroscopy of van der Waals Complexes and Metal Containing Species" (2013).  Faculty advisor,  Stewart E. Novick.
