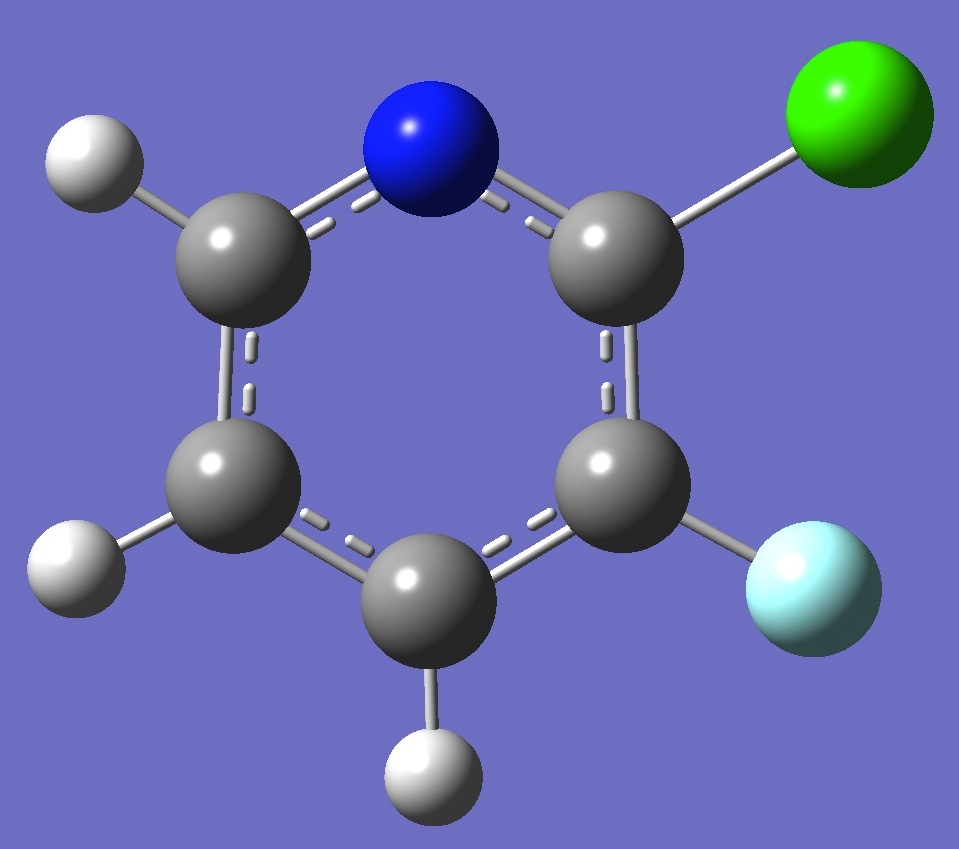

2-Cl-3-F-C5H3N


















































Nitrogen and Chlorine


Nuclear Quadrupole Coupling Constants

in 2-Chloro-3-Fluoropyridine





























Calculation was made of the nitrogen and chlorine nqcc tensors in 2-chloro-3-fluoropyridine on a molecular structure giveen by B3P86/6-31G(3d,3p) optimization.  These are compared with the experimental values of Arnold et al. [1] in Tables 1 - 3.  Structure parameters are given in Table 4, atomic coordinates in Table 5, rotational constants in Table 6, centrifugal distortion constants in Table 7.











In Tables 1 - 3, subscripts a,b,c refer to the principal axes of the inertia tensor; x,y,z to the principal axes of the nqcc tensor.  The nqcc y-axis is chosen coincident with the inertia c-axis, these are perpendicular to the molecular plane.  (degrees) is the angle between its subscripted parameters.  ETA = (Xxx - Xyy)/Xzz.  RMS is the root mean square difference between calculated and experimental nqcc's.  RSD is the calibration residual standard deviation of the B3PW91/6-311+G(df,pd) model for calculation of the N efg's/nqcc's, and the B1LYP/TZV(3df,2p) model for calculation of the Cl efg's/nqcc's.



























Table 1. Nitrogen nqcc's in 2-35Cl-3-Fluoropyridine (MHz).  Calculation was made on the B3P86/6-31G(3d,3p) ropt structure.











Calc
Expt [1] *









14N Xaa
0.393
0.369(44)



Xbb - 3.427 -
3.447(44)



Xcc
3.033
3.077(44)



|Xab|
2.626











  RMS

0.031 (1.4 %)





RSD
0.030 (1.3 %)










  Xxx
1.731




Xyy
3.033




Xzz - 4.764




ETA
0.273




z,a
63.02




a,bi
64.08





z,bi **
  1.06






















* Calculated here from experimental 1.5Xaa = 0.554(66) and 0.25(Xbb - Xcc) = -1.631(19) MHz using Kisiel's program QDIAG.


** The z-axis makes an angle of 0.98o with the external bisector ( 'bi' ) of the C(6)N(1)C(2) angle, and tilts toward C(2).



























Table 2.  Chlorine nqcc's in 2-35Cl-3-Fluoropyridine (MHz).  Calculation was made on the B3P86/6-31G(3d,3p) ropt structure.











Calc
Expt [1] *









35Cl Xaa - 71.93 -
71.600(39)



Xbb
41.29
40.352(41)



Xcc
30.63
31.248(41)



|Xab|
12.42












RMS

0.68 (1.4 %)





RSD
0.49 (1.1 %)









  Xxx
42.64




Xyy
30.63




Xzz - 73.27




ETA - 0.164




z,a
6.19




a,CCl
4.90




z,CCl
1.29




















* Calculated here from experimental 1.5Xaa = -107.400(58) and 0.25(Xbb - Xcc) = 2.276(18) MHz.





























Table 3.  Nitrogen and Chlorine nqcc's in 2-37Cl-3-Fluoropyridine (MHz).  Calculation was made on the B3P86/6-31G(3d,3p) ropt structure.











Calc
Expt [1] *









14N Xaa
0.320
0.300(80)



Xbb - 3.354 -
3.392(91)



Xcc
3.033
3.092(91)



|Xab|
2.678











  RMS

0.042 (1.9 %)





RSD
0.030 (1.3 %)









37Cl Xaa - 56.94 -
56.65(14)



Xbb
32.80
32.17(17)



Xcc
24.14
24.48(17)



|Xab|
  8.55











  RMS

0.44 (1.2 %)





RSD
0.44 (1.1 %)





















* Calculated here from experimental 1.5Xaa = 0.45(12) and 0.25(Xbb - Xcc) = -1.621(41) MHz for N, and  1.5Xaa = -84.98(21) and 0.25(Xbb - Xcc) = 1.924(78) for Cl.














Table 4.  2-Chloro-3-Fluoropyridine.  Molecular structure parameters, ropt ( and degrees).





N(1)C(2) 1.3152


C(2)C(3) 1.3951


C(3)C(4) 1.3809


C(4)C(5) 1.3895


C(5)C(6) 1.3881


C(6)N(1) 1.3336


C(2)Cl(2) 1.7271


C(3)F(3) 1.3317


C(4)H(4) 1.0839


C(5)H(5) 1.0836


C(6)H(6) 1.0860


C(6)N(1)C(2) 118.31


N(1)C(2)C(3) 122.61


C(2)C(3)C(4) 119.39


C(3)C(4)C(5) 117.99


C(4)C(5)C(6) 118.48


C(5)C(6)N(1) 123.22


N(1)C(2)Cl(2) 118.33


C(2)C(3)F(3) 120.60


C(3)C(4)H(4) 119.41


C(4)C(5)H(5) 120.90


C(5)C(6)H(6) 120.91



























Table 5.  2-35Cl-3-Fluoropyridine.  Atomic coordinates, ropt.  Normal species.








 a ()
 b ()







N(1) - 0.3977
1.4674

C(2)
0.3230
0.3673

C(3) - 0.2480 - 0.9056

C(4) - 1.6231 - 1.0316

C(5) - 2.3845
0.1307

C(6) - 1.7265
1.3529

Cl(2)
2.0438
0.5148

F(3)
0.5204 - 1.9932

H(4) - 2.0670 - 2.0204

H(5) - 3.4672
0.0868

H(6) - 2.2824
2.2858
























Table 6.  2-35Cl-3-Fluoropyridine.  Rotational Constants (MHz).   Normal species.





Calc ropt      Expt [1]





A  2960.9 2949.4216(38)

B  1616.2 1612.22964(87)

C  1045.5 1042.2833(11)




























Table 7.  2-35Cl-3-Fluoropyridine.  Quartic Centrifugal Distortion Constants (kHz).  Calc = B3LYP/cc-pVTZ








Calc.
Expt [1]







DJ

0.0372

0.035(13)

DJK
0.339



DK
0.215



d1
-
0.0162



d2 -
0.00759






























[1] S.Arnold, J.C.Chewning, and G.Brown, Abstract RE12, 69th International Symposium on Molecular Spectroscopy, Champaign-Urbana, Ill. 2014.
