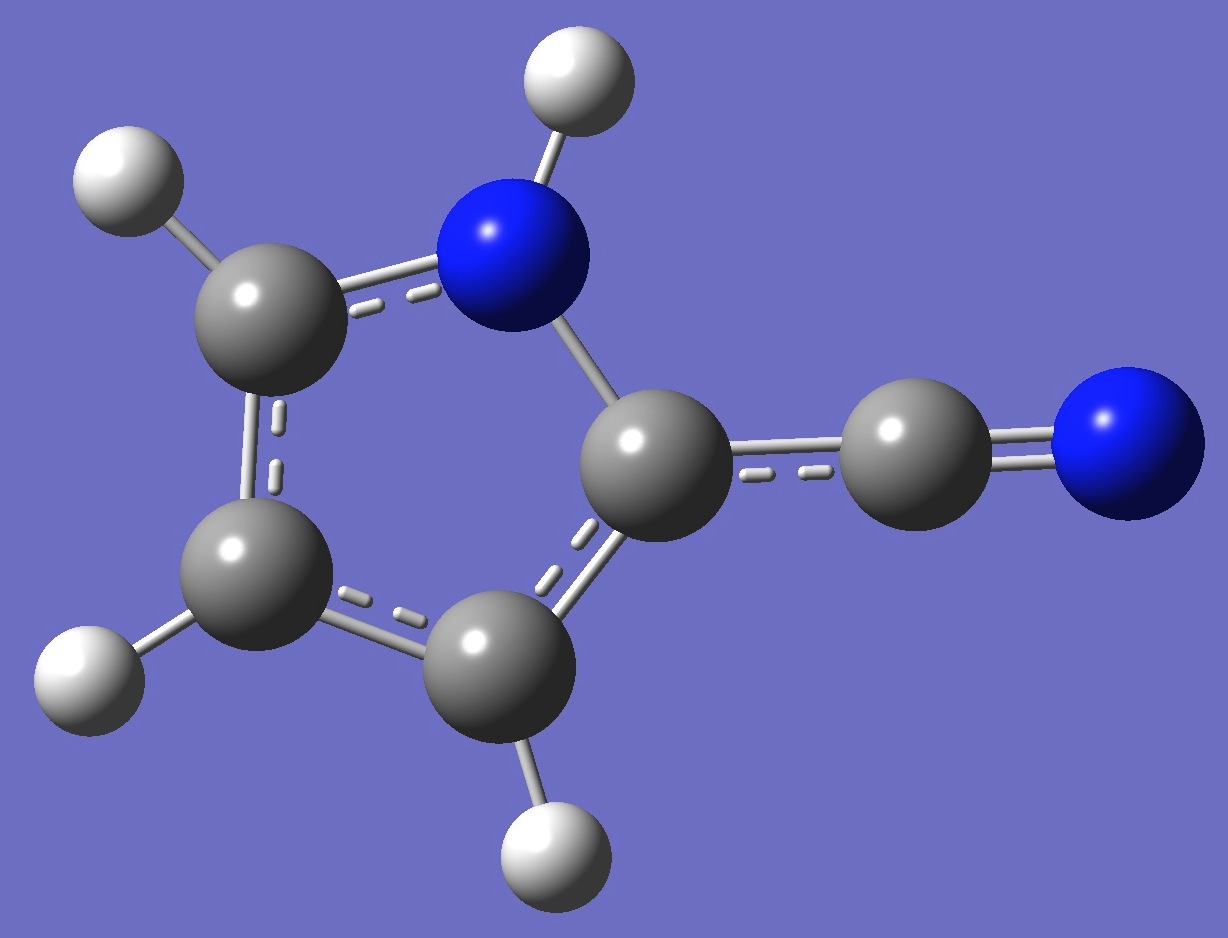

1H-Pyrrole-2-carbonitrile





















































Nitrogen


Nuclear Quadrupole Coupling Constants


in  1H-Pyrrole-2-carbonitrile





























The microwave spectrum of pyrrole-2-carbonitrile was investigated by Davis and Gerry [1] (1980), and by Sakaizumi et al. [2] (1991).











Calculation of the 14N nqcc tensors was made here on ropt molecular structures given by B3LYP/cc-pVTZ and B3P86/6-31G(3d,3p) optimizations.  These calculated nqcc's are given in Tables 1 and 2.  Structure parameters in Z-matrix format are compared in Table 3, rotational constants in Table 4.  Dipole moments and quartic centrifugal distortion constants are given in Table 5.











In Tables 1 and 2, subscripts a,b,c refer to the principal axes of the inertia tensor; x,y,z to the principal axes of the nqcc tensor.  (degrees) is the angle between its subscripted parameters.  ETA = (Xxx - Xyy)/Xzz.

RSD is the calibration residual standard deviation of the B3PW91/6-311+G(df,pd) model for calculation of nitrogen efg's/nqcc's.




























Table 1.  14N (Pyrrolic) nqcc's in Pyrrole-2-carbonitrile (MHz).  Calculation was made on the B3LYP/cc-pVTZ and B3P86/6-31G(3d,3p) ropt structures.











Calc /B3LYP

Calc /B3P86
Expt.










Xaa
1.261
1.232




Xbb
1.473
1.474




Xcc - 2.734 -
2.706




|Xab|
0.162
0.146













RSD
0.030 (1.3 %)
0.030 (1.3 %)












Xxx
1.174
1.163




Xyy
1.560
1.542




Xzz - 2.734 -
2.706




ETA
0.141
0.140




z,c
   0

   0









































Table 2.  14N (Cyanic) nqcc's in Ptrrole-2-carbonitrile (MHz).  Calculation was made on the B3LYP/cc-pVTZ and B3P86/6-31G(3d,3p) ropt structures.











Calc /B3LYP
Calc /B3P86
Expt










Xaa -
4.203
-
4.145




Xbb
2.833

2.817




Xcc
1.370

1.328




|Xab|
0.299

0.306













RSD
0.030 (1.3 %)
0.030 (1.3 %)












Xxx
2.846

2.830




Xyy
1.370
1.328




Xzz -
4.216
-
4.158




ETA
0.350

0.361




z,a
2.43

2.51




a,CN
2.52

2.59




z,CN

0.09

0.08

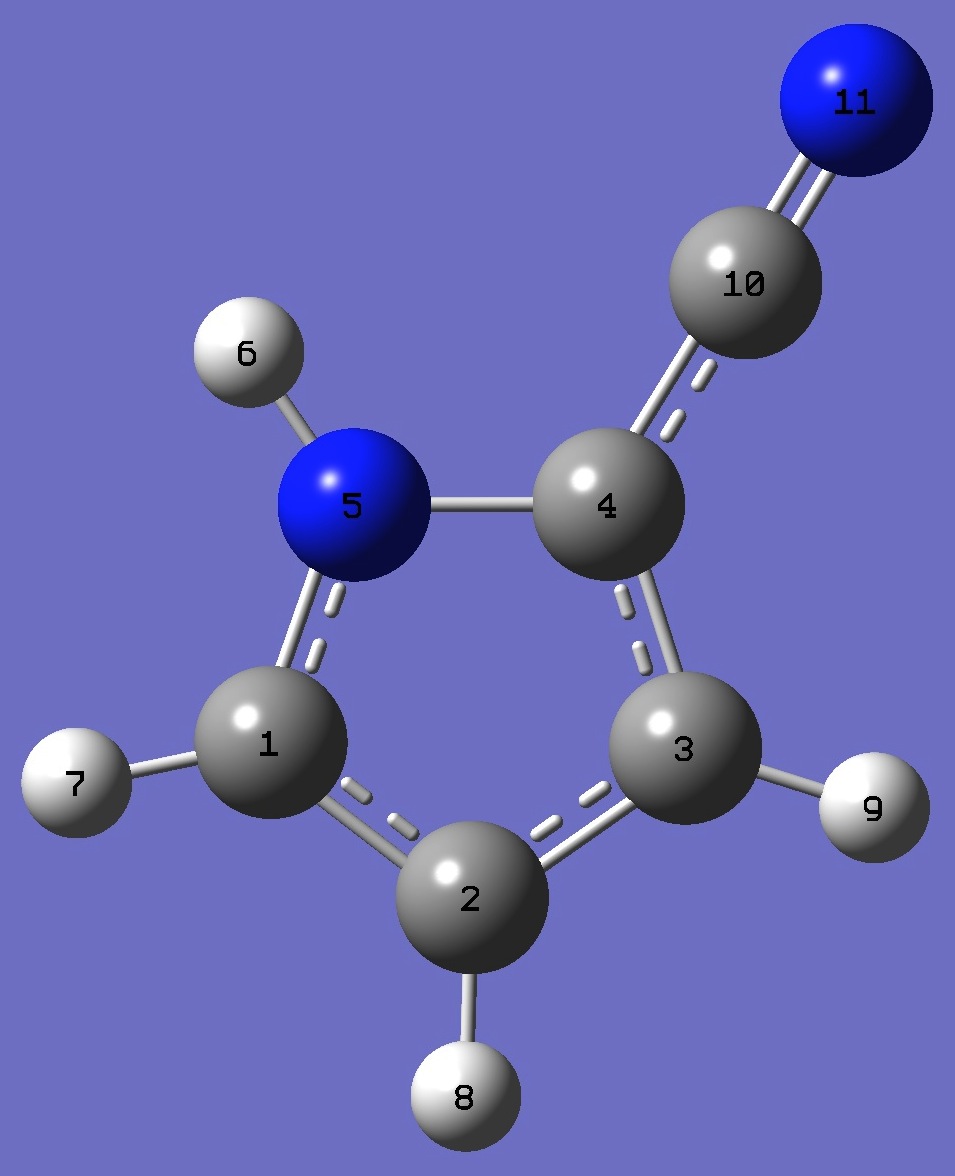

Table 3. Ptrrole-2-carbonitrile (MHz).  B3LYP/cc-pVTZ and B3P86/6-31G(3d,3p) ropt structure parameters ( and degrees).





 C
 C,1,B1
 C,2,B2,1,A1
 C,3,B3,2,A2,1,D1,0
 N,1,B4,2,A3,3,D2,0
 H,5,B5,1,A4,2,D3,0
 H,1,B6,5,A5,4,D4,0
 H,2,B7,1,A6,5,D5,0
 H,3,B8,2,A7,1,D6,0
 C,4,B9,3,A8,2,D7,0
 N,10,B10,5,A9,1,D8,0





B3LYP/cc-pVTZ
B3P86/6-31G(3d,3p)






 B1=1.37840861
 B2=1.41029885
 B3=1.38368175
 B4=1.3606205
 B5=1.00466819
 B6=1.07561793
 B7=1.07587937
 B8=1.07581057
 B9=1.40980669
 B10=1.15467711
 A1=107.51195667
 A2=107.32682339
 A3=108.18668725
 A4=125.93394597
 A5=121.11588983
 A6=125.774495
 A7=127.52066436
 A8=130.56706001
 A9=150.86619732
 D1=0.
 D2=0.
 D3=180.
 D4=180.
 D5=180.
 D6=180.
 D7=180.
 D8=180.
 B1=1.37964472
 B2=1.40928491
 B3=1.3845855
 B4=1.35813566
 B5=1.00658589
 B6=1.07874658
 B7=1.07916386
 B8=1.07902831
 B9=1.40922916
 B10=1.16001267
 A1=107.48197674
 A2=107.21719094
 A3=108.19392459
 A4=125.9859573
 A5=120.92788952
 A6=125.71651382
 A7=127.73612063
 A8=130.64701698
 A9=150.74879061
 D1=0.
 D2=0.
 D3=180.
 D4=180.
 D5=180.
 D6=180.
 D7=180.
 D8=180.





















Table 4. Ptrrole-2-carbonitrile (MHz).  B3LYP/cc-pVTZ and B3P86/6-31G(3d,3p) ropt Rotational Constants (MHz).







B3LYP
B3P86
   Expt [1]






A
 9006
 9000
8946.6297(88)

B
 1998
 1998
1988.5936(21)

C
 1635
 1635
1626.5440(16)


























Table 5. Ptrrole-2-carbonitrile (MHz).  B3LYP/cc-pVTZ Quartic Centrifugal Distortion Constants (kHz) and Dipole Moments (D).









B3LYP

Expt [1]







Delta_J

0.0718

0.0690(26)

Delta_JK
2.62

2.812(11)

Delta_K
0.108

  ----

delta_J
0.0138

0.0169(26)

delta_K
1.48

1.26(10)







|a|
4.19



|b|
1.54
























[1] R.W.Davis and M.C.L.Gerry, J.Phys.Chem. 84,1767(1980).


[2] T.Sakaizumi, M.Oka, S.Miyake, O.Ohashi, I.Yamaguchi, J.Mol.Spectrosc. 147,229(1991).
