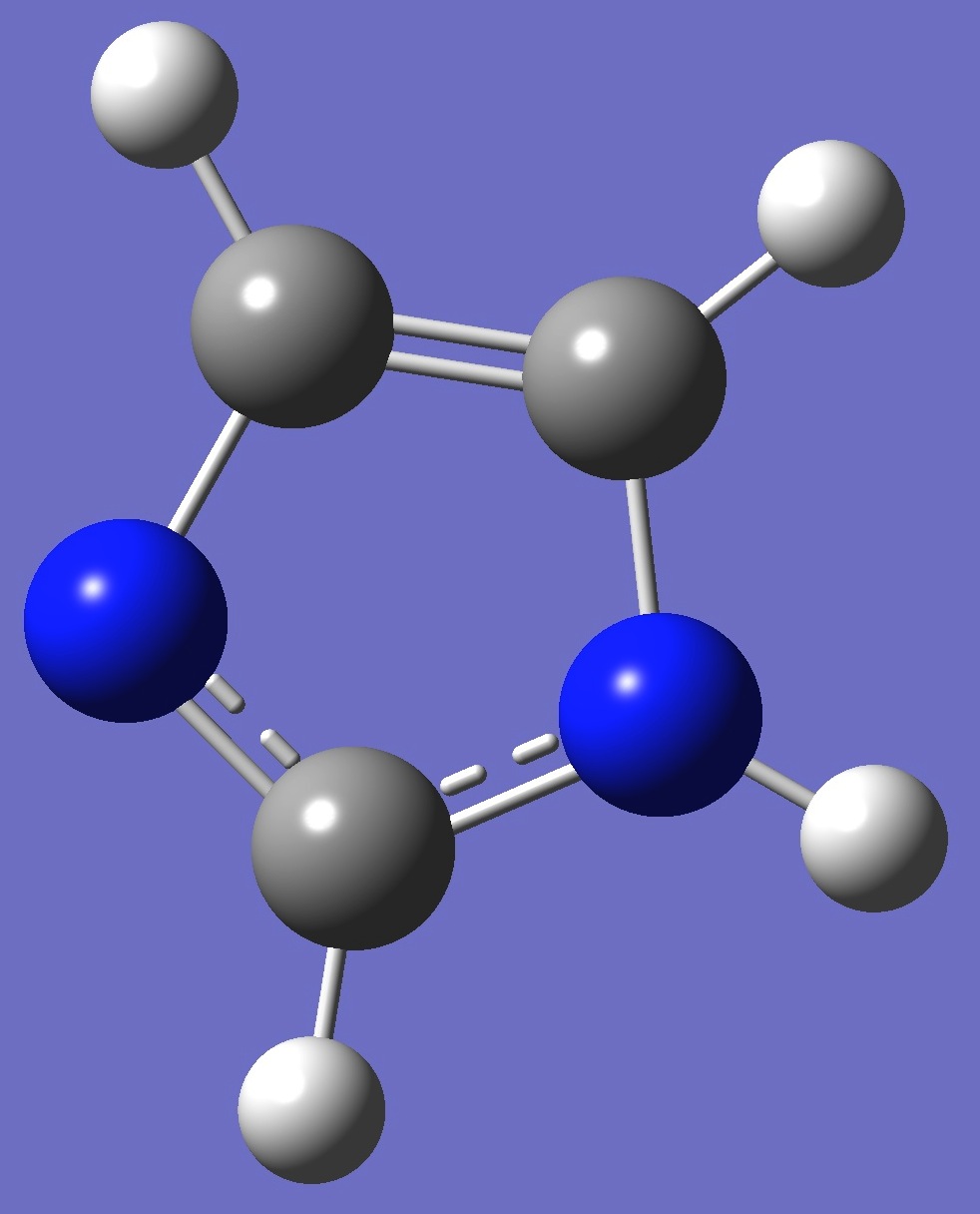

Imidazole


PDF











































Nitrogen


Nuclear Quadrupole Coupling Constants


in Imidazole





























Nitrogen nqcc's in imidazole were determined by Blackman et al. [1] and Stolze and Sutter [2].  Christen et al. [3] determined a substitution molecular structure, rs.  A semi-experimental equilibrium structure, reSE, was derived by Császár et al. [4].  Calculation of the nqcc's was made here on these structures, and on an ropt  structure given by B3LYP/cc-pVTZ optimization.  These calculated nqcc's are compared with those of Stolze and Sutter in Tables 1 and 2.










In Tables 1 and 2, subscripts a,b,c refer to the principal axes of the inertia tensor; x,y,z to the principal axes of the nqcc tensor.  The nqcc y-axis is chosen coincident with the inertia c-axis, these are perpendicular to the molecular plane.  Ø (degrees) is the angle between its subscripted parameters.  ETA = (Xxx - Xyy)/Xzz.

RMS is the root mean square difference between calculated and experimental nqcc's (percentage of the average of the magnitudes of the experimental nqcc's).  RSD is the calibration residual standard deviation of the B3PW91/6-311+G(df,pd) model for calculation or nitrogen efg's/nqcc's.






























Table 1.  14N (Pyrrolic) nqcc's in Imidazole (MHz).  Calculation was made on the rs, reSE, and ropt structures.














Calc /rs

Calc /reSE
Calc /ropt
Expt. [2]











Xaa
1.294
1.288

1.300

1.281(7)

Xbb
1.254
1.224

1.232

1.278(7)

Xcc - 2.548 -
2.513
-
2.532
- 2.559

|Xab|
0.142
0.162

0.162















RMS
0.017 (1.0 %)
0.041 (2.4 %)

0.033 (1.9 %)



RSD
0.030 (1.3 %)
0.030 (1.3 %)
0.030 (1.3 %)














Xxx
1.130
1.091

1.101




Xyy
1.417
1.422

1.431




Xzz - 2.548 -
2.513
-
2.532




ETA
0.113
0.132

0.130




Øy,a
41.0
39.44

51.01




Øa,NH
28.2
28.02

27.88




Øy,NH
12.8
11.42

11.10













































Table 2.  14N (Pyridinic) nqcc's in Imidazole (MHz).  Calculation was made on the rs, reSE, and ropt structures.













Calc /rs
Calc /reSE
Calc /ropt
Expt. [2]











Xaa - 3.945 -
3.961
-
4.003
- 3.981(5)

Xbb
1.732
1.726

1.733

1.753(8)

Xcc
2.214
2.234

2.270

2.228

|Xab|
0.794
0.802

0.810















RMS
0.025 (1.0 %)
0.019 (0.7 %)

0.029 (1.1 %)



RSD
0.030 (1.3 %)
0.030 (1.3 %)
0.030 (1.3 %)














Xxx
1.840
1.837

1.845




Xyy
2.214
2.234

2.269




Xzz - 4.054 -
4.072
-
4.115




ETA
0.092
0.098

0.103




Øz,a
  7.8
  7.88

  7.89




Øa,bi
10.0
  9.97

  9.91




Øz,bi *
  2.2
  2.09

  2.02

























* Angle between the z-axis and the bisector ( 'bi' ) of the CNC angle.














Table 3. Molecular structure parameters,  rs [3], reSE [4], and B3LYP/cc-pVTZ ropt (Å and degrees).






   rs  reSE   ropt






N(1)H(1) 0.99801.0013(1)
1.0048

N(1)C(2) 1.36431.3594(3)
1.3624

C(2)N(3) 1.31351.3114(2)
1.3098

N(3)C(4) 1.38221.3774(3)
1.3746

C(4)C(5) 1.36381.3663(3)
1.3670

C(5)N(1) 1.37741.3758(3)
1.3760

C(2)H(2) 1.07881.0761(1)
1.0774

C(4)H(4) 1.07751.0749(2)
1.0766

C(5)H(5) 1.07851.0734(3)
1.0747

N(1)C(2)N(3) 111.99111.90(2)
111.56

C(2)N(3)C(4) 104.93105.08(2)
105.49

N(3)C(4)C(5) 110.69110.69(2)
110.57

C(4)C(5)N(1) 105.48105.16(3)
105.14

C(5)N(1)C(2) 106.90107.18(1)
107.24

C(2)N(1)H(1) 126.22126.44(4)
126.51

N(1)C(2)H(2) 122.51122.39(3)
122.42

N(1)C(5)H(5) 121.92122.29(3)
122.31

N(3)C(4)H(4) 121.36121.48(3)
121.48





















[1] G.L.Blackman, R.D.Brown, F.R.Burden, and I.R.Elsum, J.Mol.Spectrosc. 60,63(1976).

[2] M.Stolze and D.H.Sutter,  Z.Naturforsch. 42a,49(1987).

[3] D.Christen, J.H.Griffiths, and J.H.Sheridan, Z.Naturforsch. 37a,1378(1982).

[4] A.G.Császár, J.Demaison, and H.D.Rudolph, J.Phys.Chem. A, 119(9),1731(2015).
