CF3(CF2)3CF2CN
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Nitrogen |
|
|
|
Nuclear
Quadrupole Coupling Constants |
|
|
in n-Perfluoropentyl transoid
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

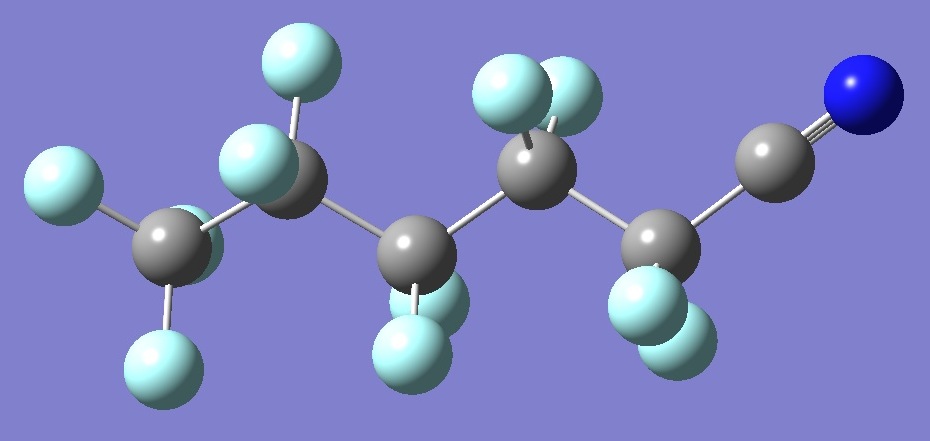

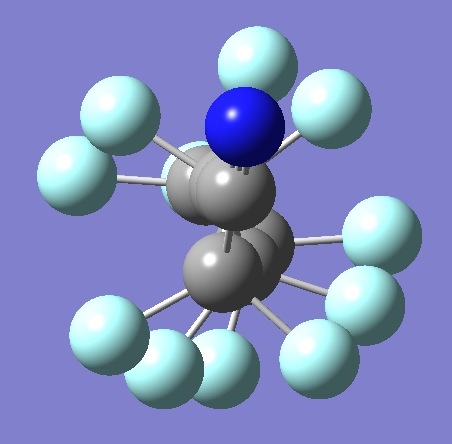

Calculation of the nitrogen nqcc's in n-perfluoropentyl cyanide, transoid
was made on structures given by
B3P86/6-31G(2d) optimization (ropt), and on this same
structure but with empirically derived
equilibrium CF, C-C, and CN bond lengths
(~ re).
These calculated nqcc's are given in Table 1. Structure
parameters are
given in
Table 2, rotational constants and electric dipole moments in Table 3. |
|
|
|
|
|
|
|
|
|
|
|
|
In Table 1,
subscripts a,b,c refer to
principal axes of the inertia tensor; subscripts x,y,z to principal
axes
of the nqcc tensor. Øz,CN (degrees) is the
angle between the principal z-axis of the nqcc tensor and the CN bond
axis. ETA = (Xxx - Xyy)/Xzz. |
|
|
RSD is the calibration residual
standard deviation of
the B3PW91/6-311+G(df,pd) model for calculation of the nitrogen nqcc's,
which may be taken as an estimate of the uncertainty in the calculated
nqcc's (unertainties in the structures not-with-standing). |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
Table 1. 14N nqcc's
in n-perfluoropentyl
cyanide, transoid (MHz).
Calculation was made on ropt and ~ re structures
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
ropt |
|
~ re |
|
Expt. |
|
| |
|
|
|
|
|
|
|
|
|
Xaa |
- |
2.448 |
- |
2.442 |
|
|
|
|
Xbb |
|
0.351 |
|
0.348 |
|
|
|
|
Xcc |
|
2.096 |
|
2.094 |
|
|
|
|
|Xab| |
|
3.170 * |
|
3.164 * |
|
|
|
|
|Xac| |
|
1.058 |
|
1.053 |
|
|
|
|
|Xbc| |
|
0.736 |
|
0.735 |
|
|
|
|
|
|
|
|
|
|
|
|
|
RSD |
|
0.030 (1.3 %) |
0.030 (1.3 %) |
|
|
|
|
|
|
|
|
|
|
|
|
Xxx |
|
2.323 |
|
2.318 |
|
|
|
|
Xyy |
|
2.433 |
|
2.428 |
|
|
|
|
Xzz |
- |
4.756 |
- |
4.746 |
|
|
|
|
ETA |
|
0.0231 |
|
0.0231 |
|
|
|
|
Øz,CN |
|
0.39 |
|
0.37 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
* The algebraic sign of the product XabXacXbc is
negative. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

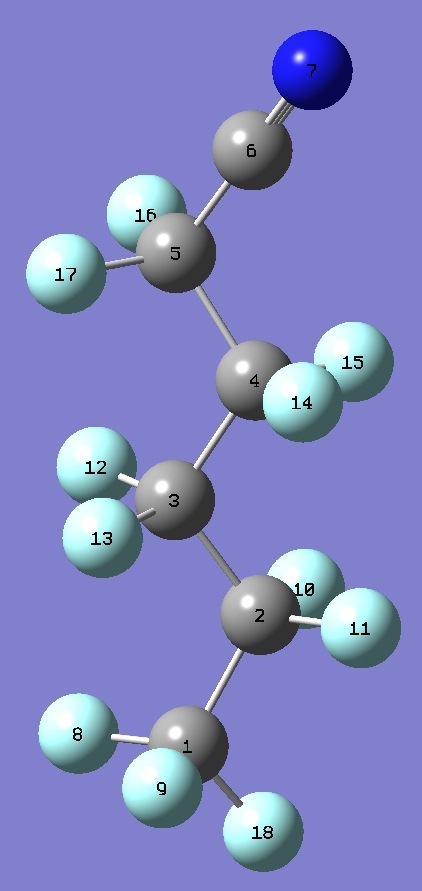

| Table 2.
n-Perfluoropentyl Cyanide, transoid.
Selected structure parameters, ropt and ~
re (Å and degrees). Complete
structures are given here in
Z-matrix format. |
| |
|
|
|
|
|
|
|
|
ropt |
|
~ re |
|
|
|
|
|
| C(1)C(2) |
|
1.5469 |
|
1.5456 |
| C(2)C(3) |
|
1.5506 |
|
1.5491 |
| C(3)C(4) |
|
1.5527 |
|
1.5511 |
| C(4)C(5) |
|
1.5519 |
|
1.5504 |
| C(5)C(6) |
|
1.4788 |
|
1.4805 |
| C(6)N(7) |
|
1.1534 |
|
1.1544 |
| C(1)C(2)C(3) |
|
113.91 |
|
113.91 |
| C(2)C(3)C(4) |
|
112.79 |
|
112.79 |
| C(3)C(4)C(5) |
|
113.76 |
|
113.76 |
| C(4)C(5)C(6) |
|
110.10 |
|
110.10 |
| C(5)C(6)N(7) |
|
179.48 |
|
179.48 |
| C(1)C(2)C(3)C(4) |
|
163.56 |
|
163.56 |
| C(2)C(3)C(4)C(5) |
|
162.42 |
|
162.42 |
| C(3)C(4)C(5)C(6) |
|
169.07 |
|
169.07 |
|
C(4)C(5)C(6)N(7) |
|
64.86 |
|
64.86 |
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
| Table 3.
n-Perfluoropentyl Cyanide, transoid.
Rotational
Constants (MHz) and Dipole Moments (D). |
|
|
|
|
|
|
|
ropt |
~ re |
Expt. |
|
|
|
|
|
|
A |
954.0 |
950.0 |
|
|
B |
278.0 |
278.1 |
|
|
C |
268.9 |
269.0 |
|
| |
|
|
|
|
|
|µa| |
1.28 |
1.26 |
|
|
|µb| |
0.74 |
0.74 |
|
|
|µc| |
0.21 |
0.21 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Order of the energies of the several
conformers of n-perfluoropentyl cyanide is Etransoid(0) <
EGA(0.47) < EAA(3.04 kJ/mol). These are
energies calculated at the B3PW91/6-311+G(df) level of theory on the
B3P86/6-31G(2d) optimized structures. |
|
|
The AA (all trans, Cs) conformer,
with one imaginary frequency, is a saddle point connecting two lower
energy minima [1]. It is not, itself, a local minimum. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[1] J.B.Foresman and AE.Frisch,
Exploring Chemistry with Electronic Structure Methods, 2nd ed.,
Gaussian, Inc. Pittsburgh, PA 1995-96. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
