CF3(CF2)4CF2CN
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Nitrogen |
|
|
|
Nuclear
Quadrupole Coupling Constants |
|
|

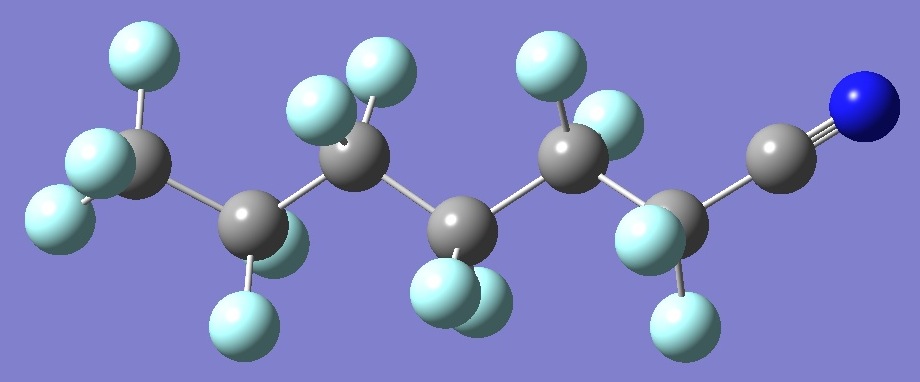

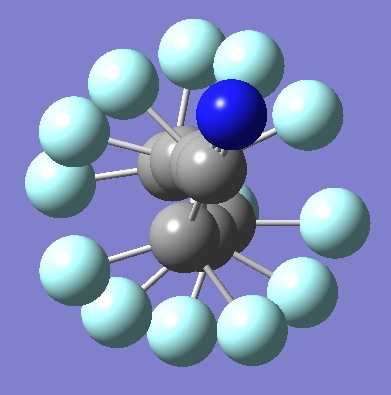

in n-Perfluorohexyl
Cyanide transoid
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Calculation of the nitrogen nqcc's in n-perfluorohexyl
cyanide, transoid was made on
structures given by
B3P86/6-31G(2d) optimization (ropt), and on this same
structure but with empirically derived
equilibrium CF, C-C, and CN bond lengths
(~ re).
These calculated nqcc's are given in Table 1. Structure
parameters are
given in
Table 2, rotational constants and dipole moments in Table 3. |
|
|
|
|
|
|
|
|
|
|
|
|
In Table 1,
subscripts a,b,c refer to
principal axes of the inertia tensor; subscripts x,y,z to principal
axes
of the nqcc tensor. Øz,CN (degrees) is the
angle between the principal z-axis of the nqcc tensor and the CN bond
axis. ETA = (Xxx - Xyy)/Xzz. |
|
|
RSD is the calibration residual
standard deviation of
the B3PW91/6-311+G(df,pd) model for calculation of the nitrogen nqcc's,
which may be taken as an estimate of the uncertainty in the calculated
nqcc's (unertainties in the structures not-with-standing). |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
Table 1. 14N nqcc's in
n-Perfluorohexyl Cyanide, transoid
(MHz).
Calculation was made on ropt and ~ re structures
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
ropt |
|
~ re |
|
Expt. |
|
| |
|
|
|
|
|
|
|
|
|
Xaa |
- |
2.163 |
- |
2.157 |
|
|
|
|
Xbb |
|
0.191 |
|
0.187 |
|
|
|
|
Xcc |
|
1.972 |
|
1.970 |
|
|
|
|
|Xab| |
|
3.203 * |
|
3.197 * |
|
|
|
|
|Xac| |
|
1.254 |
|
1.247 |
|
|
|
|
|Xbc| |
|
0.912 |
|
0.910 |
|
|
|
|
|
|
|
|
|
|
|
|
|
RSD |
|
0.030 (1.3 %) |
0.030 (1.3 %) |
|
|
|
|
|
|
|
|
|
|
|
|
Xxx |
|
2.320 |
|
2.316 |
|
|
|
|
Xyy |
|
2.435 |
|
2.430 |
|
|
|
|
Xzz |
- |
4.756 |
- |
4.745 |
|
|
|
|
ETA |
|
0.0240 |
|
0.0240 |
|
|
|
|
Øz,CN |
|
0.39 |
|
0.37 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
* The algebraic sign of the product XabXacXbc is
negative. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

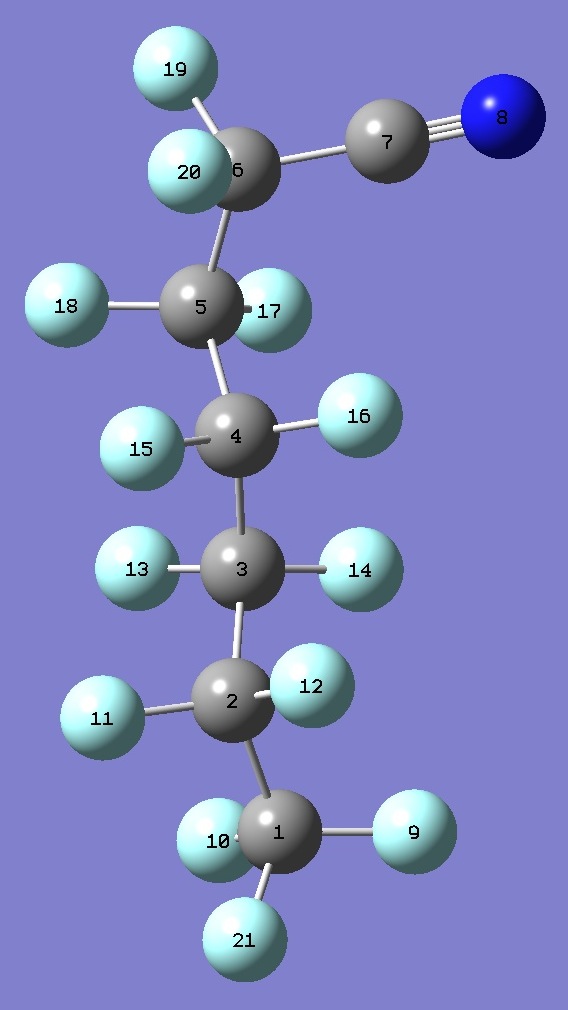

| Table 2.
n-Perfluorohexyl Cyanide, transoid.
Selected structure parameters, ropt and ~
re (Å and degrees). Complete
structures are given here in
Z-matrix format. |
| |
|
|
|
|
|
|
|
|
ropt |
|
~ re |
|
|
|
|
|
| C(1)C(2) |
|
1.5473 |
|
1.5460 |
| C(2)C(3) |
|
1.5506 |
|
1.5492 |
| C(3)C(4) |
|
1.5541 |
|
1.5525 |
| C(4)C(5) |
|
1.5534 |
|
1.5518 |
| C(5)C(6) |
|
1.5523 |
|
1.5508 |
| C(6)C(7) |
|
1.4788 |
|
1.4805 |
| C(7)N(8) |
|
1.1534 |
|
1.1544 |
| C(1)C(2)C(3) |
|
113.81 |
|
113.81 |
| C(2)C(3)C(4) |
|
112.92 |
|
112.92 |
| C(3)C(4)C(5) |
|
112.63 |
|
112.63 |
| C(4)C(5)C(6) |
|
113.66 |
|
113.66 |
| C(5)C(6)C(7) |
|
110.12 |
|
110.12 |
| C(6)C(7)N(8) |
|
179.46 |
|
179.46 |
| C(1)C(2)C(3)C(4) |
|
163.19 |
|
163.19 |
| C(2)C(3)C(4)C(5) |
|
161.86 |
|
161.86 |
| C(3)C(4)C(5)C(6) |
|
162.22 |
|
162.22 |
|
C(4)C(5)C(6)C(7) |
|
168.46 |
|
168.46 |
|
C(5)C(6)C(7)N(8) |
|
65.95 |
|
65.95 |
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
| Table 3.
n-Perfluorohexyl Cyanide, transoid.
Rotational
Constants (MHz) and Dipole Moments (D). |
|
|
|
|
|
|
|
ropt |
~ re |
Expt. |
|
|
|
|
|
|
A |
794.3 |
791.0 |
|
|
B |
184.0 |
184.1 |
|
|
C |
179.8 |
180.0 |
|
| |
|
|
|
|
|
|µa| |
1.26 |
1.24 |
|
|
|µb| |
0.69 |
0.68 |
|
|
|µc| |
0.34 |
0.33 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Note: Etransoid <
EGA by about 0.40 kJ/mol, as calculated at the
B3PW91/6-311+G(df) level of theory on the B3P86/6-31G(2d) opt
structures. |
|
|
A frequency calculation on the all trans (Cs)
conformer at the B3P86/6-31G(2d) level of
theory gives two
imaginary frequencies. Thus, this conformer is NOT an energy
minimum, nor is it a
transition structure that connects two minima [1]. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[1] J.B.Foresman and AE.Frisch,
Exploring Chemistry with Electronic Structure Methods, 2nd ed.,
Gaussian, Inc. Pittsburgh, PA 1995-96. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
