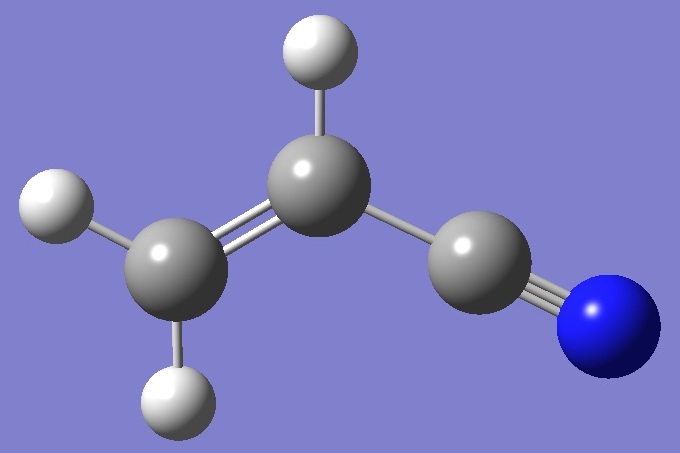

CH2=CHCN





















Nitrogen

Nuclear Quadrupole Coupling Constants


in Vinyl Cyanide (Acrylonitrile)





























Calculation of the nitrogen nqcc's in vinyl cyanide was made on the rmrho structure of Colmont et al. [1], the near-equilibrium structure of Demaison et al. [2], and the seim-experimental equilibrium structure of Kraśnicki et al. [3].  These are compared with the experimental nqcc's of Müller et al. [4] in Tables 1 - 4.  Structure parameters are compared in Table 5.










In Tables 1 - 4, RMS is the root mean square difference between calculated and experimental diagonal nqcc's (percentage of the average of the magnitudes of the experimental nqcc's).  RSD is the calibration residual standard deviation of the B3PW91/6-311+G(df,pd) model for calculation of the nitrogen nqcc's.

Subscripts a,b,c refer to the principal axes of the inertia tensor; x,y,z to the principal axes of the nqcc tensor.  The nqcc y-axis is chosen coincident with the inertia c-axis, these are perpendicular to the molecular plane.  Ø (degrees) is the angle between its subscripted parameters.  ETA = (Xxx - Xyy)/Xzz.





























Table 1. 14N nqcc's in CH2=CHCN (MHz).  Calculation was made on the rmrho structure of Colmont et al. [1], the near-re structure of Demaison et al. [2] and the semi-experimental re structure of Kraśnicki et al. [3].












Calc rmrho
Calc near-re
Calc reSE
Expt. [4]










Xaa - 3.790 - 3.799 - 3.788 - 3.78907(40)

Xbb
1.677
1.690
1.686
1.68606(43)

Xcc
2.113
2.109
2.102
2.10301(49)

|Xab|
1.749
1.736
1.730













RMS
0.008 (0.30 %) 0.007 (0.29 %) 0.001 (0.03 %)


RSD
0.030 (1.3 %) 0.030 (1.3 %) 0.030 (1.3 %)












Xxx
2.189
2.193
2.187



Xyy
2.113
2.109
2.102



Xzz - 4.302 - 4.302 - 4.289



ETA - 0.018 - 0.019 - 0.020



Øz,a
16.31
16.15
16.15



Øa,CN
16.51
15.52
15.50



Øz,CN
  0.20
  0.63
  0.65










































Table 2. 14N nqcc's in 13CH2=CHCN (MHz).  Calculation was made on the rmrho structure of Colmont et al. [1], the near-re structure of Demaison et al. [2] and the semi-experimental re structure of Kraśnicki et al. [3].












Calc rmrho
Calc near-re
Calc reSE
Expt. [4]










Xaa - 3.766 - 3.776 - 3.765 - 3.76634(55)

Xbb
1.653
1.667
1.663
1.6547(41)

Xcc
2.113
2.109
2.102
2.1116(40)

|Xab|
1.786
1.772
1.766













RMS
0.001 (0.04 %) 0.009 (0.36 %) 0.007 (0.29 %)


RSD
0.030 (1.3 %) 0.030 (1.3 %) 0.030 (1.3 %)









































Table 3. 14N nqcc's in CH2=13CHCN (MHz).  Calculation was made on the rmrho structure of Colmont et al. [1], the near-re structure of Demaison et al. [2] and the semi-experimental re structure of Kraśnicki et al. [3].












Calc rmrho
Calc near-re
Calc reSE
Expt. [4]










Xaa - 3.803 - 3.812 - 3.801 - 3.80158(55)

Xbb
1.690
1.703
1.699
1.6902(41)

Xcc
2.113
2.109
2.102
2.1114(40)

|Xab|
1.729
1.715
1.709













RMS
0.001 (0.05 %) 0.010 (0.39 %) 0.007 (0.29 %)


RSD
0.030 (1.3 %) 0.030 (1.3 %) 0.030 (1.3 %)









































Table 4. 14N nqcc's in CH2=CH13CN (MHz).  Calculation was made on the rmrho structure of Colmont et al. [1], the near-re structure of Demaison et al. [2] and the semi-experimental re structure of Kraśnicki et al. [3].












Calc rmrho
Calc near-re
Calc reSE
Expt. [4]










Xaa - 3.787 - 3.797 - 3.785 - 3.78580(40)

Xbb
1.674
1.688
1.683
1.68435(167)

Xcc
2.113
2.109
2.102
2.10145(166)

|Xab|
1.754
1.740
1.734













RMS
0.009 (0.35 %) 0.008 (0.32 %) 0.001 (0.03 %)


RSD
0.030 (1.3 %) 0.030 (1.3 %) 0.030 (1.3 %)


























Table 5.  Molecular structure parameters (Å and degrees).






rmrho [1] near-re [2] reSE [3]






C=C 1.333 1.337 1.3353(4)

C-C 1.429 1.432 1.4314(4)

CN 1.157 1.157 1.1583(4)

CH 1.093 1.082 1.0798(4)

CHt 1.088 1.080 1.0800(13)

CHc 1.097 1.081 1.0797(4)

C=C-C 122.5 122.1 122.03(6)

C-CN 180.7 179.1 179.08(11)

C=CH 121.7 121.4 121.50(3)

C=CHt 120.3 120.3 120.28(21)

C=CHc 120.2 121.5 121.22(2)




















[1] J.M.Colmont, G.Wlodarczak, D.Priem, H.S.P.Müller, E.H.Tien, R.J.Richards, and M.C.L.Gerry, J.Mol.Spectrosc. 181,330(1997).

[2] J.Demaison, J.Coslèou, R.Bocquet, and A.G.Lesarri, J.Mol. Spectrosc. 167,400(1994).

[3] A.Kraśnicki, Z.Kisiel, B.J.Drouin, and J.C.Pearson, J.Mol.Struct. 1006,20(2011).

[4] H.S.P.Müller, A.Belloche, K.M.Menton, C.Comito, and P.Schilke, J.Mol.Spectrosc. 251,319(2008).










O.I.Baskakov, S.F.Dyubko, V.V.Ilyushin, M.N.Efimenko, V.A.Efremov, S.V.Podnos, and E.A.Alekseev, J.Mol.Spectrosc. 179,94(1996).

M.Stolze and D.H.Sutter, Z.Naturforsch. 40a,998(1985).

M.C.L.Gerry, K.Yamada, and G.Winnewisser, J.Phys.Chem.Ref.Data 8,107(1979).
