C3H6NH |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Nitrogen
|
|
|
|
Nuclear
Quadrupole Coupling Constants |
|
|

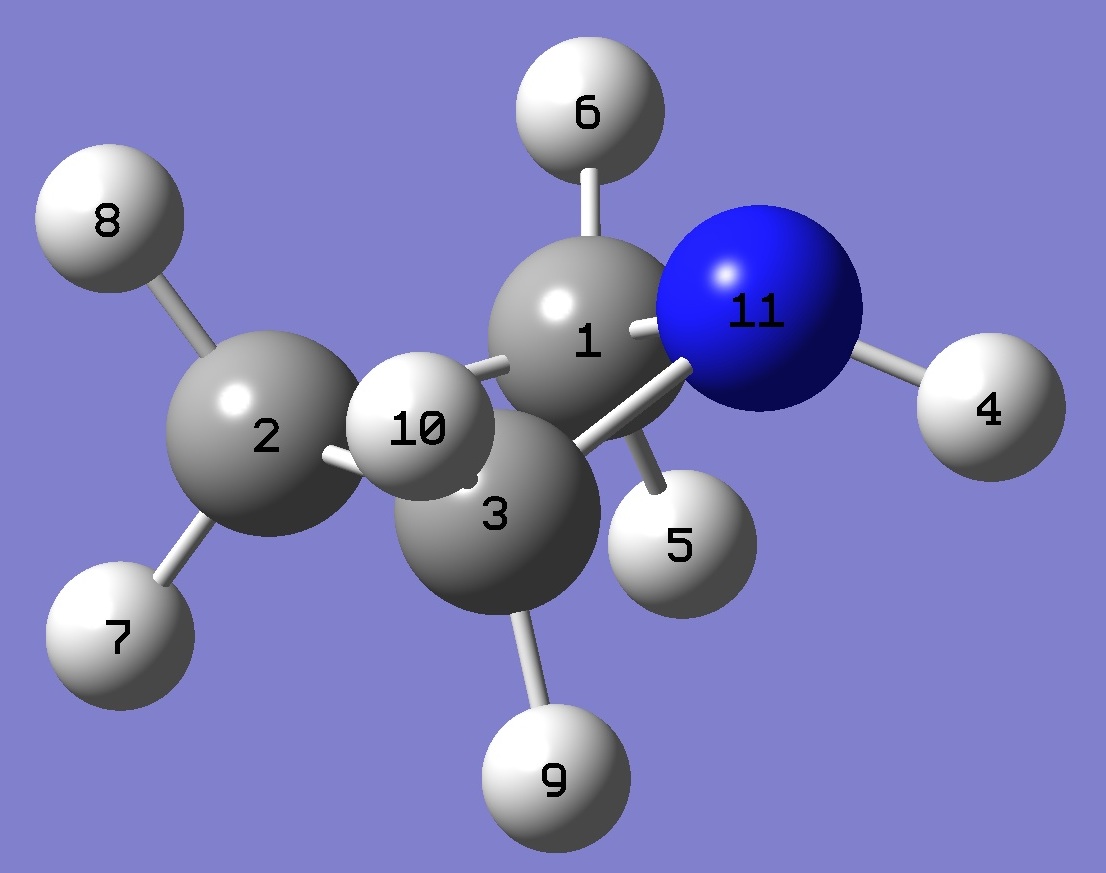

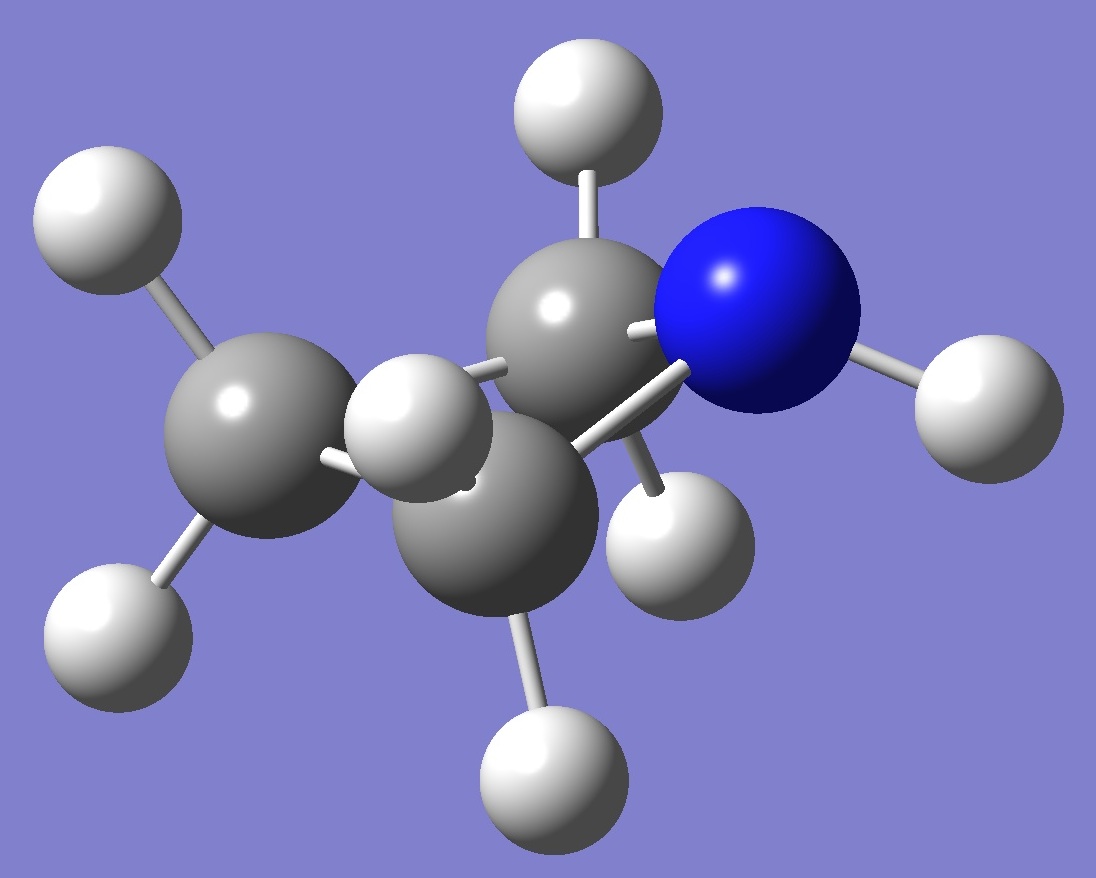

in equatorial Azetidine
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Calculation nitrogen nqcc tensor in
equatorial azetidine
was made on structures ropt(1) and ropt(2)
given by B3P86/6-31G(2d,2p) and B3P86/6-31G(3d,3p) respectively. These
calculated nqcc's are compared with experimental values [1] in Table 1.
Structure parameters are given in
Table 2, rotational constants in Table 3.
|
|
|
|
|
|
|
|
|
|
|
|
|
In Table 1,
subscripts a,b,c refer to the
principal axes of the inertia tensor; x,y,z to the principal axes
of the nqcc tensor. Ø (degrees) is the angle between its
subscript parameters. ETA = (Xxx - Xyy)/Xzz. |
|
|
RSD is the
calibration residual standard deviation of the B3PW91/6-311+G(df,pd)
model for calculation of the nitrogen nqcc's, which may be taken
as an estimate of the uncertainty in the calculated nqcc's
(notwithstanding uncertainities in the optimized molecular structures).
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
Table 1. 14N
nqcc's in eq Azetidine (MHz). Calculation was made on
the ropt(1) and ropt(2) structures. |
|
| |
|
|
|
|
|
|
|
|
|
|
|
Calc / ropt(1)
|
|
Calc / ropt(1)
|
|
Expt. [1[
|
|
| |
|
|
|
|
|
|
|
|
|
Xaa |
|
1.947
|
|
1.965
|
|
1.9260(70)
|
|
|
Xbb |
|
2.669
|
|
2.672
|
|
2.6927(71)
|
|
|
Xcc |
-
|
4.616
|
-
|
4.637
|
-
|
4.6187(73)
|
|
|
|Xac|
|
|
1.524
|
|
1.518
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RMS
|
|
0.018 (0.6 %)
|
|
0.028 (0.9 %)
|
|
|
|
|
RSD |
|
0.030 (1.3 %) |
0.030 (1.3 %) |
|
|
|
|
|
|
|
|
|
|
|
|
Xxx |
|
2.283
|
|
2.298
|
|
|
|
|
Xyy |
|
2.669
|
|
2.672
|
|
|
|
|
Xzz |
-
|
4.952
|
-
|
4.969
|
|
|
|
|
ETA |
|
0.0779
|
|
0.0753
|
|
|
|
|
Øz,a |
|
77.55
|
|
77.65
|
|
|
|
|
Øa,NH |
|
143.17
|
|
143.36
|
|
|
|
|
Øz,NH |
|
65.62
|
|
65.71
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
| Table 2. eq Azetidine. Selected
structure parameters, ropt(1) and ropt(2)
(Å and degrees). Complete structures are given here in Z-matrix format. |
| |
|
|
|
|
|
ropt(1) |
ropt(2) |
|
|
|
|
|
NH
|
1.0132
|
1.0145
|
NC(1,3)
|
1.4768
|
1.4790
|
C(1,3)C(2)
|
1.5410
|
1.5394
|
CNC
|
90.38
|
90.24
|
NCC
|
88.76
|
88.77
|
CCC
|
85.68
|
85.81
|
C(1,3)NH
|
114.96
|
115.13
|
| C(1)C(2)C(3)N
|
18.58
|
18.63
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Table
3. eq Azetidine.
Calculated and experimental rotational constants (MHz).
|
|
|
|
|
|
|
|
ropt(1) |
ropt(2) |
Expt [1]
|
|
|
|
|
|
|
A
|
11565.5
|
11563.8
|
11453.13707(40)
|
|
B
|
11462.9
|
11454.5
|
11339.19585(38)
|
|
C
|
6662.8
|
6660.6
|
6612.03793(45)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[1] J.C.López, S.Blanco,
A.Lesarri, and J.L.Alonso, J.Chem.Phys. 114(5),2237(2001).
|
|
|
|
|
|
|
|
|
|
|
|
|
H.Günther, G.Schrem, and
H.Oberhammer, J.Mol.Spect. 104,152(1984). |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
