CF3(CF2)3CF2CN
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Nitrogen |
|
|
|
Nuclear
Quadrupole Coupling Constants |
|
|
in n-Perfluoropentyl
gauche-anti
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

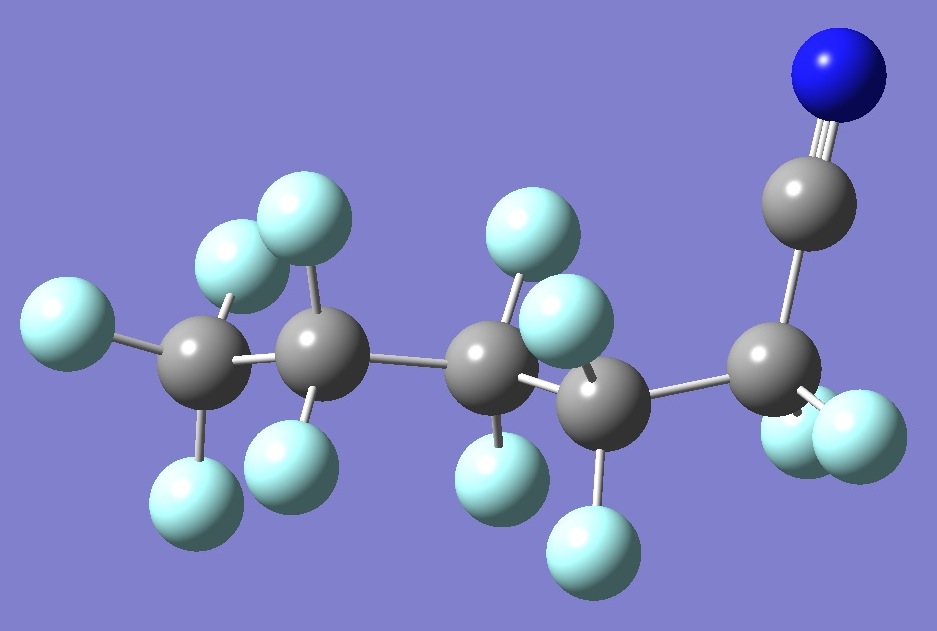

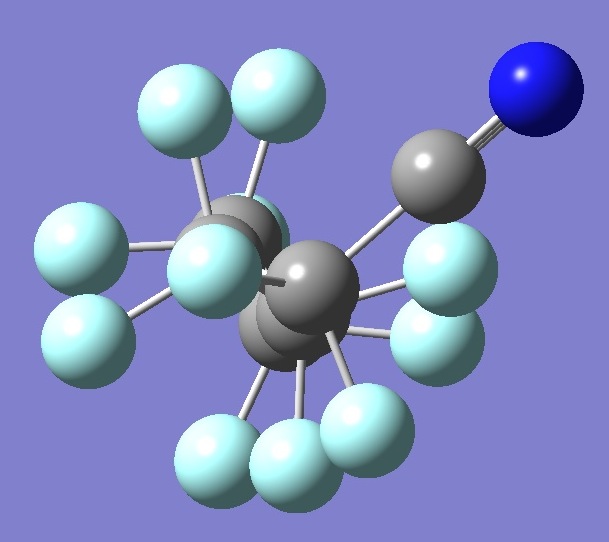

Calculation of the nitrogen nqcc's in n-perfluoropentyl cyanide, GA
was made on structures given by
B3P86/6-31G(2d) optimization (ropt), and on this same
structure but with empirically derived
equilibrium CF, C-C, and CN bond lengths
(~ re).
These calculated nqcc's are given in Table 1. Structure
parameters are
given in
Table 2, rotational constants and electric dipole moments in Table 3. |
|
|
|
|
|
|
|
|
|
|
|
|
In Table 1,
subscripts a,b,c refer to
principal axes of the inertia tensor; subscripts x,y,z to principal
axes
of the nqcc tensor. Øz,CN (degrees) is the
angle between the principal z-axis of the nqcc tensor and the CN bond
axis. ETA = (Xxx - Xyy)/Xzz. |
|
|
RSD is the calibration residual
standard deviation of
the B3PW91/6-311+G(df,pd) model for calculation of the nitrogen nqcc's,
which may be taken as an estimate of the uncertainty in the calculated
nqcc's (unertainties in the structures not-with-standing). |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
Table 1. 14N nqcc's
in n-perfluoropentyl
cyanide, GA (MHz).
Calculation was made on ropt and ~ re structures
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
ropt |
|
~ re |
|
Expt. |
|
| |
|
|
|
|
|
|
|
|
|
Xaa |
|
1.847 |
|
1.843 |
|
|
|
|
Xbb |
- |
3.471 |
- |
3.478 |
|
|
|
|
Xcc |
|
1.624 |
|
1.635 |
|
|
|
|
|Xab| |
|
1.629 * |
|
1.627 * |
|
|
|
|
|Xac| |
|
0.632 |
|
0.624 |
|
|
|
|
|Xbc| |
|
2.169 |
|
2.148 |
|
|
|
|
|
|
|
|
|
|
|
|
|
RSD |
|
0.030 (1.3 %) |
0.030 (1.3 %) |
|
|
|
|
|
|
|
|
|
|
|
|
Xxx |
|
2.304 |
|
2.298 |
|
|
|
|
Xyy |
|
2.430 |
|
2.424 |
|
|
|
|
Xzz |
- |
4.734 |
- |
4.723 |
|
|
|
|
ETA |
|
0.0266 |
|
0.0267 |
|
|
|
|
Øz,CN |
|
0.31 |
|
0.30 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
* The algebraic sign of the product XabXacXbc is
negative. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Table 2.
n-Perfluoropentyl Cyanide, GA.
Selected structure parameters, ropt and ~
re (Å and degrees). Complete
structures are given here in
Z-matrix format. |
| |
|
|
|
|
|
|
|
|
ropt |
|
~ re |
|
|
|
|
|
| C(1)C(2) |
|
1.5469 |
|
1.5456 |
| C(2)C(3) |
|
1.5493 |
|
1.5479 |
| C(3)C(4) |
|
1.5495 |
|
1.5581 |
| C(4)C(5) |
|
1.5549 |
|
1.5533 |
| C(5)C(6) |
|
1.4758 |
|
1.4776 |
| C(6)N(7) |
|
1.1534 |
|
1.1544 |
| C(1)C(2)C(3) |
|
113.97 |
|
113.97 |
| C(2)C(3)C(4) |
|
113.13 |
|
113.13 |
| C(3)C(4)C(5) |
|
113.65 |
|
113.65 |
| C(4)C(5)C(6) |
|
113.15 |
|
113.15 |
| C(5)C(6)N(7) |
|
178.70 |
|
178.70 |
| C(1)C(2)C(3)C(4) |
- |
163.89 |
- |
163.89 |
| C(2)C(3)C(4)C(5) |
- |
162.00 |
- |
162.00 |
| C(3)C(4)C(5)C(6) |
|
73.93 |
|
73.93 |
|
C(4)C(5)C(6)N(7) |
|
124.95 |
|
124.95 |
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
| Table 3.
n-Perfluoropentyl Cyanide, GA. Rotational
Constants (MHz) and Dipole Moments (D). |
|
|
|
|
|
|
|
ropt |
~ re |
Expt. |
|
|
|
|
|
|
A |
849.4 |
846.1 |
|
|
B |
293.7 |
293.8 |
|
|
C |
285.3 |
285.4 |
|
| |
|
|
|
|
|
|µa| |
0.65 |
0.65 |
|
|
|µb| |
1.16 |
1.14 |
|
|
|µc| |
0.49 |
0.49 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
For the all trans (Cs)
conformer, the structure was optimized at the B3P86/6-31G(2d) level of
theory. A frequency calculation on this structure gives one
imaginary frequency. It is, therefore, a
transition structure that connects two minima [1]. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[1] J.B.Foresman and AE.Frisch,
Exploring Chemistry with Electronic Structure Methods, 2nd ed.,
Gaussian, Inc. Pittsburgh, PA 1995-96. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
