CF3(CF2)4CF2CN
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Nitrogen |
|
|
|
Nuclear
Quadrupole Coupling Constants |
|
|
in n-Perfluorohexyl
Cyanide gauche-anti
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

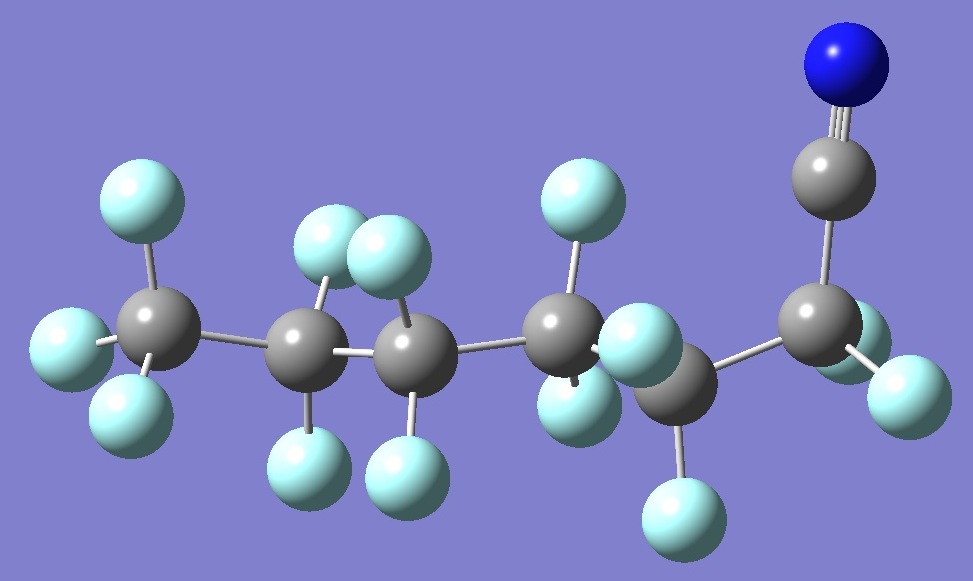

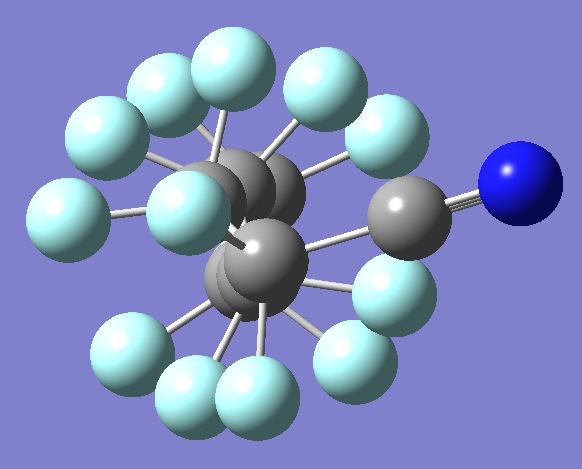

Calculation of the nitrogen nqcc's in n-perfluorohexyl
cyanide, GA was made on structures given by
B3P86/6-31G(2d) optimization (ropt), and on this same
structure but with empirically derived
equilibrium CF, C-C, and CN bond lengths
(~ re).
These calculated nqcc's are given in Table 1. Structure
parameters are
given in
Table 2, rotational constants and dipole moments in Table 3. |
|
|
|
|
|
|
|
|
|
|
|
|
In Table 1,
subscripts a,b,c refer to
principal axes of the inertia tensor; subscripts x,y,z to principal
axes
of the nqcc tensor. Øz,CN (degrees) is the
angle between the principal z-axis of the nqcc tensor and the CN bond
axis. ETA = (Xxx - Xyy)/Xzz. |
|
|
RSD is the calibration residual
standard deviation of
the B3PW91/6-311+G(df,pd) model for calculation of the nitrogen nqcc's,
which may be taken as an estimate of the uncertainty in the calculated
nqcc's (unertainties in the structures not-with-standing). |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
Table 1. 14N nqcc's in
n-Perfluorohexyl Cyanide, GA (MHz).
Calculation was made on ropt and ~ re structures
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
ropt |
|
~ re |
|
Expt. |
|
| |
|
|
|
|
|
|
|
|
|
Xaa |
|
2.046 |
|
2.041 |
|
|
|
|
Xbb |
- |
4.310 |
- |
4.304 |
|
|
|
|
Xcc |
|
2.264 |
|
2.263 |
|
|
|
|
|Xab| |
|
1.326 * |
|
1.322 * |
|
|
|
|
|Xac| |
|
0.239 |
|
0.236 |
|
|
|
|
|Xbc| |
|
1.022 |
|
1.009 |
|
|
|
|
|
|
|
|
|
|
|
|
|
RSD |
|
0.030 (1.3 %) |
0.030 (1.3 %) |
|
|
|
|
|
|
|
|
|
|
|
|
Xxx |
|
2.302 |
|
2.296 |
|
|
|
|
Xyy |
|
2.431 |
|
2.425 |
|
|
|
|
Xzz |
- |
4.733 |
- |
4.722 |
|
|
|
|
ETA |
|
0.0272 |
|
0.0273 |
|
|
|
|
Øz,CN |
|
0.31 |
|
0.31 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
* The algebraic sign of the product XabXacXbc is
negative. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Table 2.
n-Perfluorohexyl Cyanide, GA.
Selected structure parameters, ropt and ~
re (Å and degrees). Complete
structures are given here in
Z-matrix format. |
| |
|
|
|
|
|
|
|
|
ropt |
|
~ re |
|
|
|
|
|
| C(1)C(2) |
|
1.5472 |
|
1.5459 |
| C(2)C(3) |
|
1.5504 |
|
1.5490 |
| C(3)C(4) |
|
1.5529 |
|
1.5514 |
| C(4)C(5) |
|
1.5501 |
|
1.5486 |
| C(5)C(6) |
|
1.5552 |
|
1.5536 |
| C(6)C(7) |
|
1.4758 |
|
1.4776 |
| C(7)N(8) |
|
1.1534 |
|
1.1544 |
| C(1)C(2)C(3) |
|
113.83 |
|
113.83 |
| C(2)C(3)C(4) |
|
112.92 |
|
112.92 |
| C(3)C(4)C(5) |
|
113.03 |
|
113.03 |
| C(4)C(5)C(6) |
|
113.59 |
|
113.59 |
| C(5)C(6)C(7) |
|
113.18 |
|
113.18 |
| C(6)C(7)N(8) |
|
178.67 |
|
178.67 |
| C(1)C(2)C(3)C(4) |
- |
163.30 |
- |
163.30 |
| C(2)C(3)C(4)C(5) |
- |
162.30 |
- |
162.30 |
| C(3)C(4)C(5)C(6) |
- |
162.13 |
- |
162.13 |
|
C(4)C(5)C(6)C(7) |
|
74.01 |
|
74.01 |
|
C(5)C(6)C(7)N(8) |
|
124.64 |
|
124.64 |
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
| Table 3.
n-Perfluorohexyl Cyanide, GA. Rotational
Constants (MHz) and Dipole Moments (D). |
|
|
|
|
|
|
|
ropt |
~ re |
Expt. |
|
|
|
|
|
|
A |
718.2 |
715.4 |
|
|
B |
192.2 |
192.3 |
|
|
C |
188.9 |
189.0 |
|
| |
|
|
|
|
|
|µa| |
0.59 |
0.59 |
|
|
|µb| |
1.23 |
1.22 |
|
|
|µc| |
0.15 |
0.15 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
For the all trans (Cs)
conformer, the structure was optimized at the B3P86/6-31G(2d) level of
theory. A frequency calculation on this structure gives two
imaginary frequencies. Thus, this structure is a second-order
saddle point. It is NOT an energy minimum. It is NOT a
transition structure that connects two minima [1]. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[1] J.B.Foresman and AE.Frisch,
Exploring Chemistry with Electronic Structure Methods, 2nd ed.,
Gaussian, Inc. Pittsburgh, PA 1995-96. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
