C6H11I
axial
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Iodine |
|
|
|
Nuclear
Quadrupole Coupling Constants |
|
|
in
axial

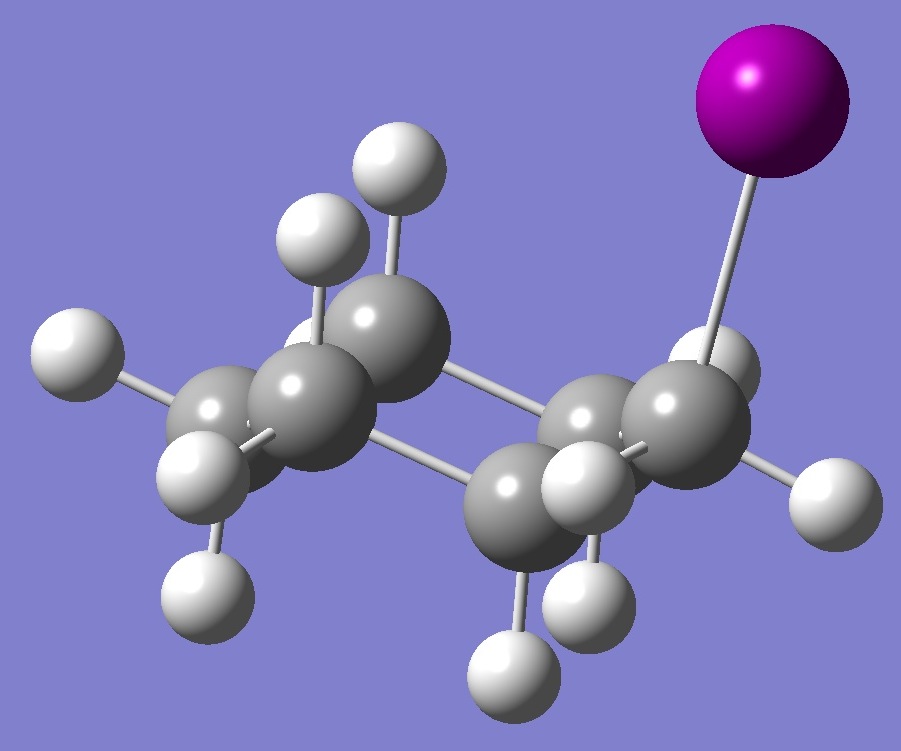

Cyclohexyl Iodide
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
127I nqcc's in cyclohexyl
iodide were determined by Damiani et
al. [1].
|
|
|
|
|
|
|
|
|
|
|
|
|
Calculation of the 127I
nqcc tensor was made here on molecular
structures
given by MP2/6-311+G(d,p),
MP2/6-311+G(2d,p), and MP2/6-311+G(3d,3p)
optimizations. These calculated nqcc's are compared with the
experimental values
in Tables 1 - 3. Structure
parameters are given in Table 4, rotational constants in Table 5. |
|
|
|
|
|
|
|
|
|
|
|
|
In Tables 1 - 3, subscripts a,b,c
refer to the principal axes of the inertia tensor; x,y,z to the
principal axes of the nqcc tensor. Ø (degrees) is the
angle between its subscripted parameters. ETA = (Xxx -
Xyy)/Xzz. |
|
|
RMS is the root mean square
difference between calculated and experimental diagonal nqcc's (percent
of average of absolute experimental nqcc's). RSD is the
calibration residual
standard deviation of
the B1LYP/6-311G(df,p) model for calculation of the nqcc's, which may
be taken as an estimate of the uncertainty in the calculated nqcc's
(inaccuracies in molecular structures notwithstanding). |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
Table 1. 127I
nqcc's in axial Cyclohexyl Iodide (MHz). Calculation was made on
the
MP2/6-311+G(d,p) optimized molecular structure. |
|
|
|
|
|
|
|
|
|
|
|
|
|
Calc |
|
Expt [1] |
|
| |
|
|
|
|
|
|
|
|
127I |
Xaa |
|
- 978.5 |
- |
852(12) |
|
|
|
Xbb |
|
850.6 |
|
822(6) |
|
|
|
Xcc |
|
127.9 |
|
30(18) |
|
|
|
|Xac| |
|
1183.6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
RMS |
|
92. (16 %) |
|
|
|
|
|
RSD |
|
15.2 (1.23 %) |
|
|
|
|
|
|
|
|
|
|
|
|
|
Xxx |
|
881.2 |
|
|
|
|
|
Xyy |
|
850.6 |
|
|
|
|
|
Xzz |
- |
1731.8 |
|
|
|
|
|
ETA |
- |
0.0177 |
|
|
|
|
|
Øz,a |
|
32.48 |
|
|
|
|
|
Øa,CI |
|
33.70 |
|
|
|
|
|
Øz,CI |
|
1.22 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
Table 2. 127I
nqcc's in axial Cyclohexyl Iodide (MHz). Calculation was made on
the
MP2/6-311+G(2d,p) optimized molecular structure. |
|
|
|
|
|
|
|
|
|
|
|
|
|
Calc |
|
Expt [1] |
|
| |
|
|
|
|
|
|
|
|
127I |
Xaa |
|
- 959.2 |
- |
852(12) |
|
|
|
Xbb |
|
843.7 |
|
822(6) |
|
|
|
Xcc |
|
115.5 |
|
30(18) |
|
|
|
|Xac| |
|
1183.1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
RMS |
|
80. (14 %) |
|
|
|
|
|
RSD |
|
15.2 (1.23 %) |
|
|
|
|
|
|
|
|
|
|
|
|
|
Xxx |
|
877.6 |
|
|
|
|
|
Xyy |
|
843.7 |
|
|
|
|
|
Xzz |
- |
1721.2 |
|
|
|
|
|
ETA |
- |
0.0197 |
|
|
|
|
|
Øz,a |
|
32.79 |
|
|
|
|
|
Øa,CI |
|
34.01 |
|
|
|
|
|
Øz,CI |
|
1.23 |
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
Table 3. 127I
nqcc's in axial Cyclohexyl Iodide (MHz). Calculation was made on
the
MP2/6-311+G(3d,3p) optimized molecular structure. |
|
|
|
|
|
|
|
|
|
|
|
|
|
Calc |
|
Expt [1] |
|
| |
|
|
|
|
|
|
|
|
127I |
Xaa |
|
- 948.4 |
- |
852(12) |
|
|
|
Xbb |
|
841.8 |
|
822(6) |
|
|
|
Xcc |
|
106.5 |
|
30(18) |
|
|
|
|Xac| |
|
1186.2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
RMS |
|
72. (13 %) |
|
|
|
|
|
RSD |
|
15.2 (1.23 %) |
|
|
|
|
|
|
|
|
|
|
|
|
|
Xxx |
|
877.3 |
|
|
|
|
|
Xyy |
|
843.7 |
|
|
|
|
|
Xzz |
- |
1719.1 |
|
|
|
|
|
ETA |
- |
0.0206 |
|
|
|
|
|
Øz,a |
|
33.01 |
|
|
|
|
|
Øa,CI |
|
34.18 |
|
|
|
|
|
Øz,CI |
|
1.16 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

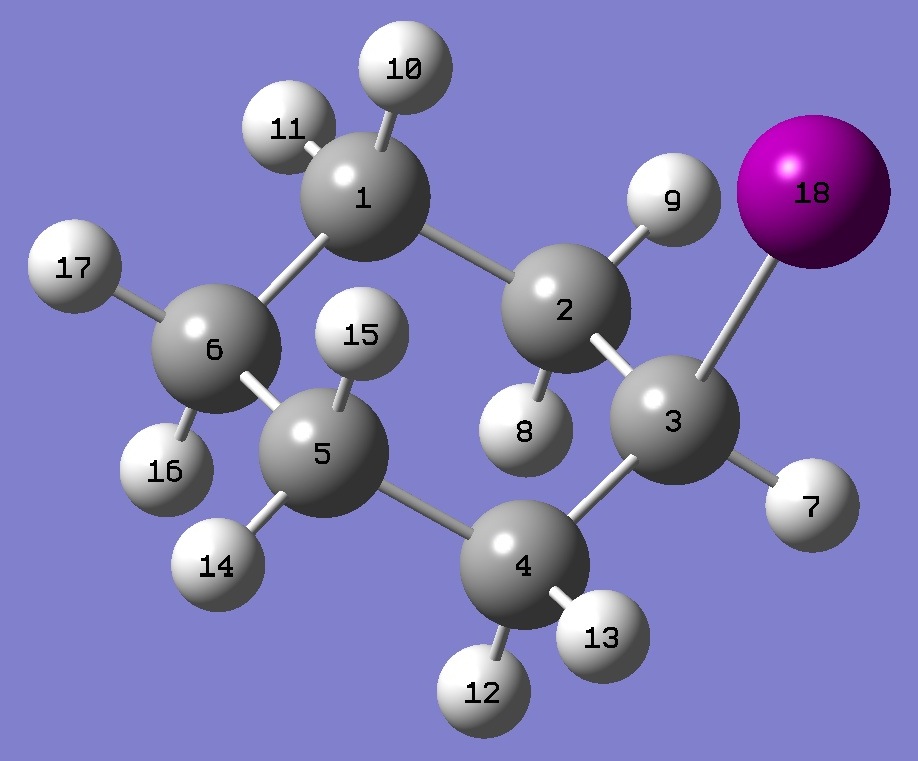

| Table 4.
Cyclohexyl Iodide. Selected structure
parameters (Å and
degrees). Complete structures are given here in Z-matrix representation. |
| |
|
|
| Point Group CS |
MP2/6-311+G(d,p) ropt |
|
|
|
|
IC(3) |
2.1928 |
| C(3)C(2) |
1.5281 |
| C(2)C(1) |
1.5300 |
| C(1)C(6) |
1.5319 |
| C(2,4)C(3)I |
110.83 |
| C(2)C(3)C(4) |
111.70 |
| |
|
| MP2/6-311+G(2d,p) ropt |
|
|
| IC(3) |
2.1657 |
| C(3)C(2) |
1.5235 |
| C(2)C(1) |
1.5268 |
| C(1)C(6) |
1.5289 |
| C(2,4)C(3)I |
110.93 |
| C(2)C(3)C(4) |
111.58 |
| |
|
|
MP2/6-311+G(3d,3p) ropt |
|
|
|
|
IC(3) |
2.1821 |
|
C(3)C(2) |
1.5234 |
|
C(2)C(1) |
1.5265 |
|
C(1)C(6) |
1.5287 |
|
C(2,4)C(3)I |
110.40 |
|
C(2)C(3)C(4) |
111.74 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Table 5.
Cyclohexyl Iodide. Rotational constants
(MHz). |
|
|
|
|
|
|
|
|
ropt (1) =
MP2/6-311+G(d,p) opt |
|
|
ropt
(2) = MP2/6-311+G(2d,p)
opt |
|
|
ropt (3)
= MP2/6-311+G(3d,3p)
opt |
|
|
|
|
|
|
|
|
ropt (1) |
ropt (2) |
ropt (3) |
Expt [1] |
|
|
|
|
|
|
|
A
|
3016.62 |
3030.82 |
3018.12 |
3007.1(4) |
|
B |
880.64 |
896.36 |
898.36 |
888.921(3) |
|
C |
826.97 |
841.26 |
844.30 |
834.126(2) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[1] D.Damiani, F.Scappini,
W.Caminati, and G.Corbelli, J.Mol.Spectrosc. 100,36(1983). |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
