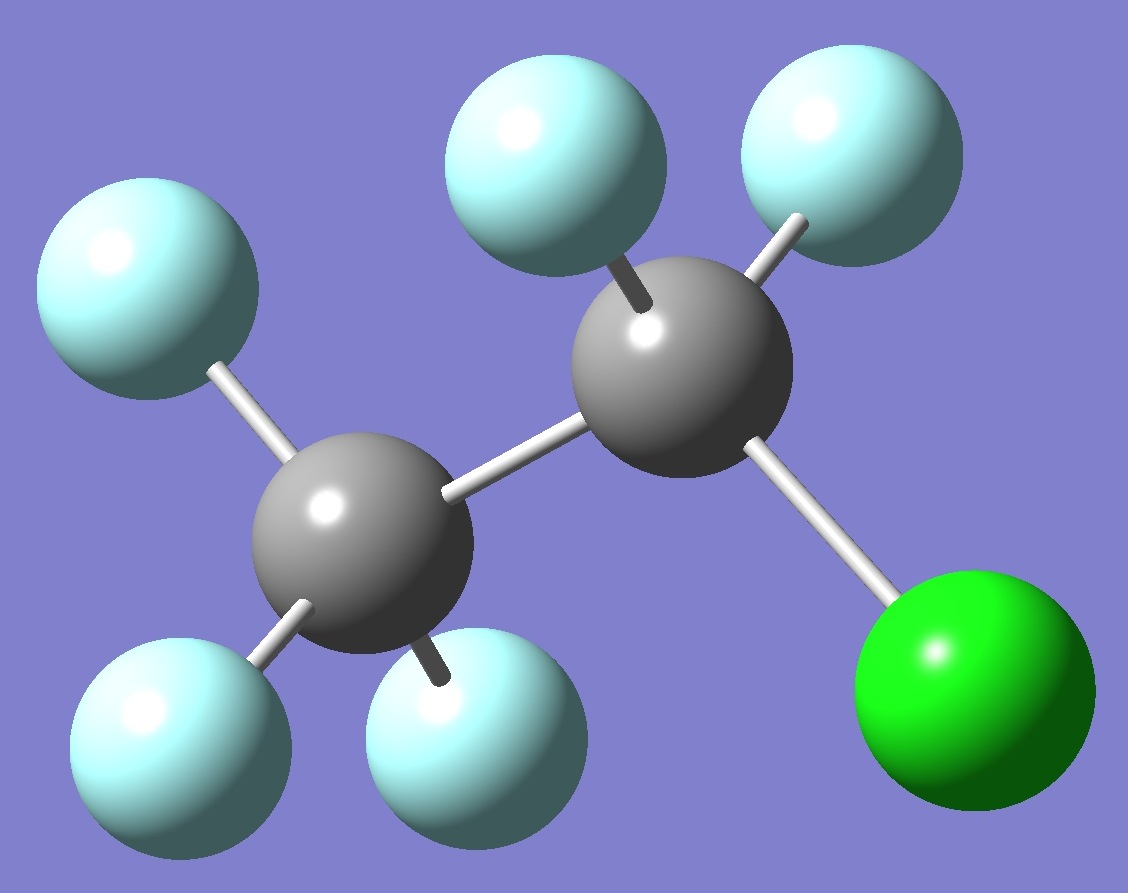

CF3-CF2Cl |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Chlorine |
|
|
|
Nuclear
Quadrupole Coupling Constants |
|
|
in
Perfluoroethyl Chloride
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Calculation of the chlorine nqcc
tensor in perfluoroethyl chloride was made on a
molecular structure given by MP2/aug-cc-pVTZ
optimization (ropt),
and on same structure but with ~re CCl,
C-C, and CF bond lengths.
(Also, see Calculation of Nuclear
Quadrupole Coupling Constants on Approximate Equilibrium Structures:
Ethanes.)
|
|
|
|
|
|
|
|
|
|
|
|
|
Calculated nqcc tensors are compared
with experimental values [1]
in Tables 1 and 2.
Structure
parameters are given in Table 3. Rotational constants and dipole
moments (given by B1LYP/TZV(3df,2p) calculation) are given in Tables 4
and 5. Quartic centrifugal distortion constants, calculated and
experimental, are given in Table 6. |
|
|
|
|
|
|
|
|
|
|
|
|
In Tables 1 and 2, subscripts a,b,c
refer to the
principal axes of the inertia tensor; x,y,z to the principal axes
of the nqcc tensor.
Ø (degrees) is the angle between its subscripted
parameters. ETA = (Xxx - Xyy)/Xzz. |
|
|
RMS is root mean square difference
between calculated and experimental diagonal nqcc's. RSD is the
calibration residual
standard deviation of
the B1LYP/TZV(3df,2p) model for calculation of the chlorine nqcc's. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
Table 1. 35Cl
nqcc's in
CF3-CF2Cl (MHz).
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
ropt
|
|
~re |
|
Expt. [1] |
|
| |
|
|
|
|
|
|
|
|
|
Xaa |
- |
25.76 |
- |
25.76 |
- |
25.7949(19) |
|
|
Xbb |
- |
13.24 |
- |
13.00 |
- |
12.8998(29) |
|
|
Xcc |
|
39.00 |
|
38.77 |
|
38.6937(22) |
|
|
|Xab| |
|
57.49 |
|
57.08 |
|
56.90(20) |
|
|
|
|
|
|
|
|
|
|
|
RMS |
|
0.26 (1.0 %) |
|
0.08 (0.3 %) |
|
|
|
|
RSD |
|
0.49 (1.1 %) |
|
0.49 (1.1 %) |
|
|
|
|
|
|
|
|
|
|
|
|
|
Xxx |
|
38.34 |
|
38.06 |
|
|
|
|
Xyy |
|
39.00 |
|
38.77 |
|
|
|
|
Xzz |
- |
77.33 |
- |
76.82 |
- |
76.61(20) |
|
|
ETA |
|
0.008 |
|
0.009 |
|
|
|
|
Øz,a |
|
41.89 |
|
41.81 |
|
|
|
|
Øa,CCl |
|
43.16 |
|
43.13 |
|
|
|
|
Øz,CCl |
|
1.26 |
|
1.32 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
Table 2. 37Cl nqcc's in
CF3-CF2Cl (MHz).
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
ropt
|
|
~re |
|
Expt. [1] |
|
| |
|
|
|
|
|
|
|
|
|
Xaa |
- |
22.22 |
- |
22.21 |
- |
22.2210(33) |
|
Xbb |
|
- 8.51 |
|
- 8.34 |
|
- 8.2762(48) |
|
Xcc |
|
30.74 |
|
30.55 |
|
30.4972(35) |
|
|Xab| |
|
45.06 |
|
44.73 |
|
45.09(42) |
|
|
|
|
|
|
|
|
|
|
|
RMS |
|
0.19 (1.0 %) |
|
0.05 (0.2 %) |
|
|
|
|
RSD |
|
0.44 (1.1 %) |
|
0.44 (1.1 %) |
|
|
|
|
|
|
|
|
|
|
|
|
|
Xxx |
|
30.21 |
|
29.99 |
|
|
|
|
Xyy |
|
30.74 |
|
30.55 |
|
|
|
|
Xzz |
- |
60.95 |
- |
60.54 |
|
|
|
|
ETA |
|
0.008 |
|
0.009 |
|
|
|
|
Øz,a |
|
40.68 |
|
40.60 |
|
|
|
|
Øa,CCl |
|
41.94 |
|
41.92 |
|
|
|
|
Øz,CCl |
|
1.26 |
|
1.32 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

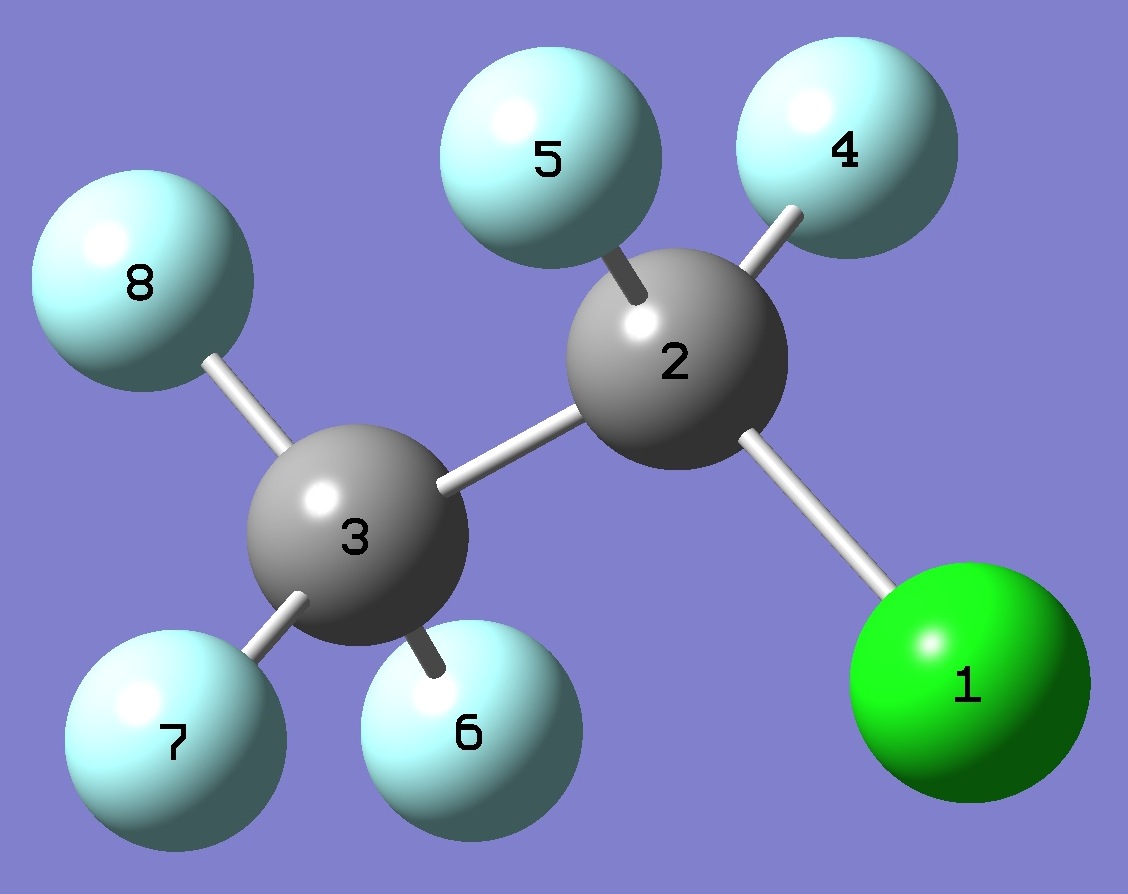

| Table 3. CF3-CF2Cl.
Selected structure
parameters (Å and degrees). Complete structures are given here in Z-matrix format. |
| |
|
|
|
|
| CS |
|
|
ropt |
~re |
|
|
|
|
|
|
C(2)Cl |
1.7500 |
1.7467 |
| C(2)F(4,5) |
1.3371 |
1.3311 |
| C(2)C(3) |
1.5467 |
1.5435 |
| C(3)C(2)Cl |
111.01 |
111.01 |
| C(3)C(2)F(4,5) |
108.44 |
108.44 |
| FC(2)F |
108.50 |
108.50 |
| F(4,5)C(2)Cl |
110.18 |
110.18 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Table 4. CF3-CF235Cl
Equilibrium Rotational Constants (MHz) and Dipole Moments (D). |
|
|
|
|
|
|
|
ropt |
~re |
Expt. [1] |
|
|
|
|
|
|
A |
2348.94 |
2367.26 |
2355.757034(98) |
|
B |
1530.02 |
1539.12 |
1526.04449(10) |
|
C |
1378.09 |
1385.78 |
1375.08171(12) |
|
|
|
|
|
|
|mua| |
0.47 |
0.45 |
|
|
|mub| |
0.36 |
0.34 |
|
|
mutot |
0.60 |
0.57 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Table 5. CF3-CF237Cl
Equilibrium
Rotational Constants (MHz) and Dipole Moments (D). |
|
|
|
|
|
|
|
ropt |
~re |
Expt. [1] |
|
|
|
|
|
|
A |
2337.65 |
2355.86 |
2344.36431(46) |
|
B |
1502.64 |
1511.52 |
1498.75959(22) |
|
C |
1352.06 |
1359.57 |
1349.11638(21) |
|
|
|
|
|
|
|mua| |
0.48 |
0.46 |
|
|
|mub| |
0.35 |
0.33 |
|
|
mutot |
0.60 |
0.57 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
| Table 6. CF3-CF235Cl
Quartic Centrifugal Distortion Constants (kHz). |
| |
|
|
|
|
|
|
|
|
|
B3LYP * |
|
Expt [1] |
|
|
|
|
|
|
|
|
|
Delta_J |
|
0.120 |
|
0.1224(10) |
|
|
Delta_KJ |
- |
0.0460 |
- |
0.0666(25) |
|
|
Delta_K |
|
0.134 |
|
0.1505(17) |
|
|
delta_J |
|
0.0185 |
|
0.0199(12) |
|
|
delta_K |
- |
0.0461 |
|
|
|
|
|
|
|
|
|
|
|
* Run B3LYP/cc-pVTZ opt
output=pickett ---> extract the principal axes structure --->
then B3LYP/cc-pVTZ freq=vibrot output=pickett. Doug Fox, Gaussian
Inc., private communication. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[1] B.E.Long, G.S.Grubbs
II, J.Langridge, and S.A.Cooke, J.Mol.Struct. 1023,55(2012);
B.E.Long,
J.Langridge,
S.A.Cooke, and G.S.Grubbs II, 66th International Symposium
on
Molecular Spectroscopy, Ohio State University, 2011, Abstract RH03. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
