ggt-CH2F-CH2-CH2I












Iodine


Nuclear Quadrupole Coupling Constants

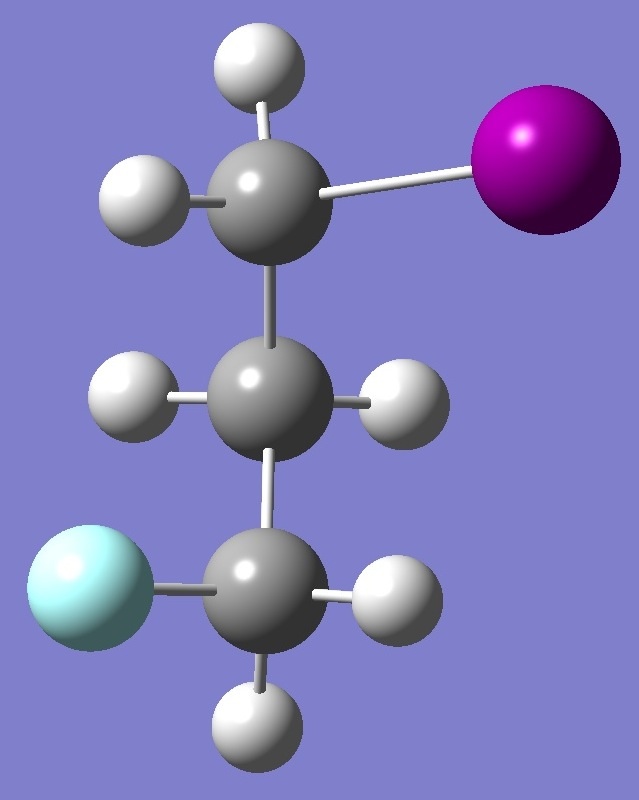

in ggt-1-Fluoro-3-Iodopropane










Calculation of the 127I nqcc tensor in ggt-1-fluoro-3-iodopropane (F and I are trans) was made here on molecular structures given by MP2/6-311+G(d,p), MP2/6-311+G(2d,p), and MP2/6-311G(3d,3p) optimizations; and on these same structures but with empirically corrected C-C, CF, and CH bond lengths.  These nqcc's are compared with the experimental values in Tables 1 - 3.  Structure parameters are given in Table 4, rotational constants in Table 5.

In Tables 1 - 3, subscripts a,b,c refer to the principal axes of the inertia tensor; x,y,z to the principal axes of the nqcc tensor.  Ø (degrees) is the angle between its subscripted parameters.  ETA = (Xxx - Xyy)/Xzz.
RMS is the root mean square difference between calculated and experimental diagonal nqcc's (percent of the average of the magnitudes of the experimental nqcc's).  RSD is the calibration residual standard deviation of the B1LYP/6-311G(df,p) model for calculation of the nqcc's, which may be taken as an estimate of the uncertainty in the calculated nqcc's.

















Table 1. 127I nqcc's in ggt-1-fluoro-3-iodopropane (MHz).

Calc (1) was made on the MP2/6-311+G(d,p) optimized molecular structure.
Calc (2) was made on this same structure but with empirically corrected C-C, CF, and CH bond lengths.



Calc (1)
Calc (2)
  Expt. [1]





Xaa - 852.5 - 856.4 - 849.124(12)
Xbb   238.8   239.8   231.775(19)
Xcc   613.7   616.6   617.338(14)
|Xab| * 1111.4 1110.0 1109.352(43)
|Xac| *   697.3   693.0   690.217(56)
|Xbc| *   447.8   443.2   444.589(24)

RMS   5.0 (0.88 %)   6.3 (1.11 %)
RSD 15.2 (1.23 %) 15.2 (1.23 %)

Xxx   934.2   932.2   928.527(39)
Xyy   892.2   891.3   890.735(44)
Xzz - 1826.4 - 1823.5 - 1819.262(47)
ETA - 0.0230 - 0.0225 - 0.020773(32)
Øz,a   36.58   36.47   36.5957(4)
Øz,b   59.88   59.92   59.7712(6)
Øz,c 108.76 108.63 108.6199(9)
Øz,CI     0.76     0.78


* The algebraic sign of the product XabXacXbc is negative.










Table 2. 127I nqcc's in ggt-1-fluoro-3-iodopropane (MHz).

Calc (1) was made on the MP2/6-311+G(2d,p) optimized molecular structure.
Calc (2) was made on this same structure but with empirically corrected C-C, CF, and CH bond lengths.



Calc (1)
Calc (2)
  Expt. [1]





Xaa - 844.2 - 845.5 - 849.124(12)
Xbb   241.1   237.4   231.775(19)
Xcc   603.0   608.2   617.338(14)
|Xab| * 1100.7 1103.1 1109.352(43)
|Xac| *   698.0   691.9   690.217(56)
|Xbc| *   447.1   443.8   444.589(24)

RMS 10.3 (1.82 %)   8.1 (1.44 %)
RSD 15.2 (1.23 %) 15.2 (1.23 %)

Xxx   928.4   927.3   928.527(39)
Xyy   884.7   884.7   890.735(44)
Xzz - 1813.0 - 1812.0 - 1819.262(47)
ETA - 0.0241 - 0.0235 - 0.020773(32)
Øz,a   36.63   36.58   36.5957(4)
Øz,b   59.96   59.88   59.7712(6)
Øz,c 108.93 108.76 108.6199(9)
Øz,CI     0.74     0.74



* The algebraic sign of the product XabXacXbc is negative.









Table 3. 127I nqcc's in ggt-1-fluoro-3-iodopropane (MHz).

Calc (1) was made on the MP2/6-311+G(3d,3p) optimized molecular structure.
Calc (2) was made on this same structure but with empirically corrected C-C, CF, and CH bond lengths.



Calc (1)
Calc (2)
  Expt. [1]





Xaa - 835.4 - 837.8 - 849.124(12)
Xbb   229.5   226.2   231.775(19)
Xcc   606.0   611.6   617.338(14)
|Xab| * 1108.4 1111.2 1109.352(43)
|Xac| *   693.6   687.6   690.217(56)
|Xbc| *   448.4   444.8   444.589(24)

RMS 10.3 (1.83 %)   8.0 (1.41 %)
RSD 15.2 (1.23 %) 15.2 (1.23 %)

Xxx   929.0   928.4   928.527(39)
Xyy   885.4   885.9   890.735(44)
Xzz - 1814.4 - 1814.2 - 1819.262(47)
ETA - 0.0240 - 0.0234 - 0.020773(32)
Øz,a   36.82   36.77   36.5957(4)
Øz,b   59.67   59.60   59.7712(6)
Øz,c 108.84 108.65 108.6199(9)
Øz,CI     0.74     0.75


* The algebraic sign of the product XabXacXbc is negative.

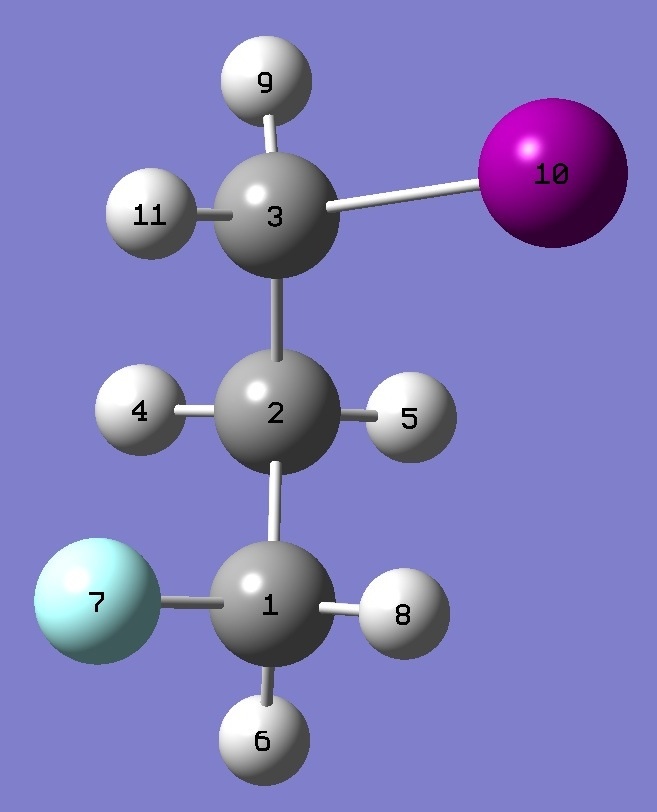

Table 4.  ggt-1-fluoro-3-iodopropane.  Heavy atom structure parameters (Å and degrees).  Complete structures are given here in Z-matrix representation.

r (1) = MP2/6-311+G(d,p) opt
r (2) = r (1) with corrected C-C, CF, and CH bond lengths.

Point Group C1   r (1)   r (2)

IC(3) 2.1661 2.1661
C(3)C(2) 1.5226 1.5151
C(2)C(1) 1.5138 1.5068
C(1)F 1.3980 1.3885
IC(3)C(2) 112.99 112.99
C(3)C(2)C(1) 113.82 113.82
C(2)C(1)F 109.12 109.12
C(1)C(2)C(3)I   66.92   66.92
C(3)C(2)C(1)F   58.37   58.37

r (1) = MP2/6-311+G(2d,p) opt
r (2) = r (1) with corrected C-C, CF, and CH bond lengths.
  r (1)   r (2)
IC(3) 2.1457 2.1457
C(3)C(2) 1.5176 1.5151
C(2)C(1) 1.5093 1.5068
C(1)F 1.4012 1.3885
IC(3)C(2) 113.31 113.31
C(3)C(2)C(1) 113.80 113.80
C(2)C(1)F 109.12 109.12
C(1)C(2)C(3)I   66.72   66.72
C(3)C(2)C(1)F   58.46   58.46

r (1) = MP2/6-311+G(3d,3p) opt
r (2) = r (1) with corrected C-C, CF, and CH bond lengths.
  r (1)   r (2)
IC(3) 2.1590 2.1590
C(3)C(2) 1.5178 1.5151
C(2)C(1) 1.5098 1.5068
C(1)F 1.4020 1.3885
IC(3)C(2) 112.81 112.81
C(3)C(2)C(1) 113.33 113.33
C(2)C(1)F 109.09 109.09
C(1)C(2)C(3)I   66.03   66.03
C(3)C(2)C(1)F   58.52   58.52











Table 5.  ggt-1-fluoro-3-iodopropane.  Rotational constants (MHz).

r (1) = MP2/6-311+G(d,p) opt
r (2) = r (1) with corrected C-C, CF, and CH bond lengths.
  r (1)   r (2)    Expt. [1]

A 6643.3 6696.1 6761.0876(34)
B 1073.5 1079.2 1066.54581(56)
C 1019.2 1024.6 1014.49324(74)

r (1) = MP2/6-311+G(2d,p) opt
r (2) = r (1) with corrected C-C, CF, and CH bond lengths.
A 6678.2 6718.5 6761.0876(34)
B 1084.4 1087.7 1066.54581(56)
C 1029.4 1032.3 1014.49324(74)

r (1) = MP2/6-311+G(3d,3p) opt
r (2) = r (1) with corrected C-C, CF, and CH bond lengths.
A 6605.8 6644.5 6761.0876(34)
B 1092.4 1095.8 1066.54581(56)
C 1035.1 1038.2 1014.49324(74)



[1] G.S.Grubbs II, W.C.Bailey, and S.A.Cooke, Chem.Phys.Lett. 477,37(2009).
